LED Strip
Slim 3mm & 5mm
Mini LED strip in super narrow width with extremely flexible bending.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description

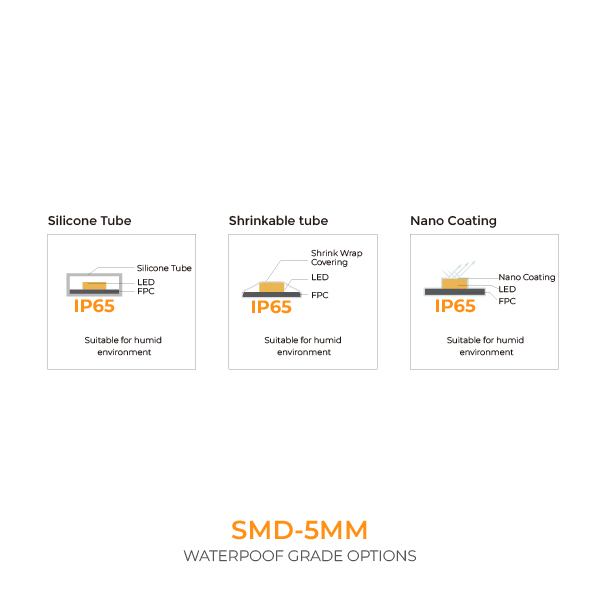

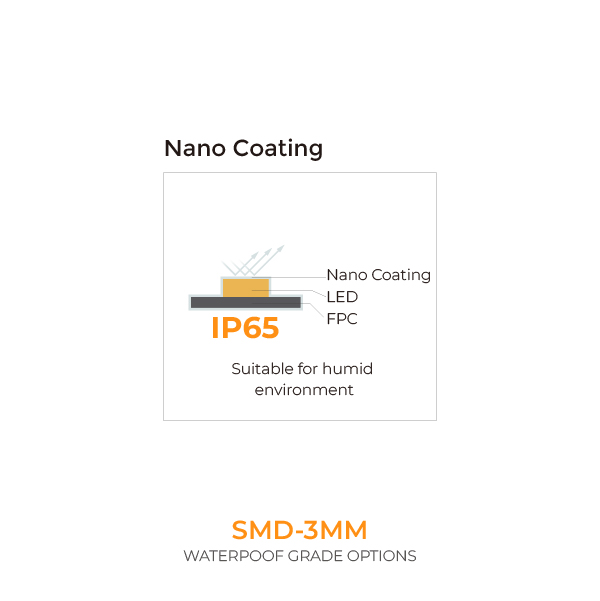

Super narrow strip width for special area installation. The strip width could be 3mm / 5mm. Mini LED strip with extreme flexible bending diameter. SDCM≤3 to ensure color consistency. It is IP20, which can be upgraded to IP54, IP65, IP67 and IP68 protection.
Key Features
Super Slim
Mini LED strip in super narrow width 3mm/5mm with extremely flexible bending.
One LED One Cut
Part of items support one LED, one cut.
LED SDCM3
Pure gold wire LED, long-life LED > 50,000 hrs, 1 Bin, CRI>90.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|

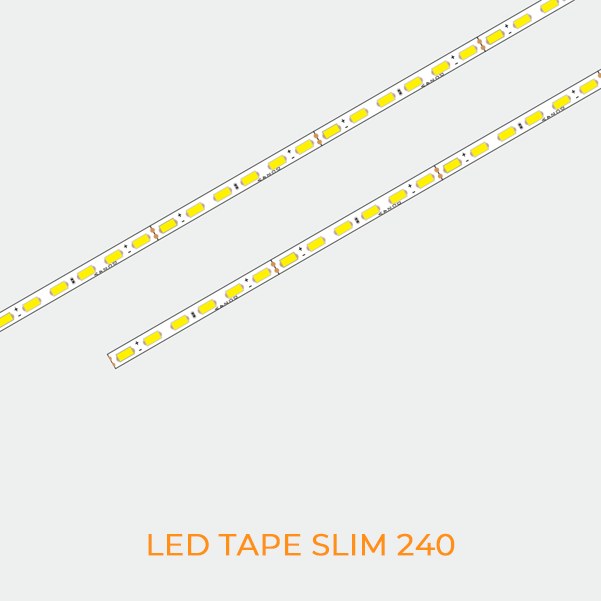

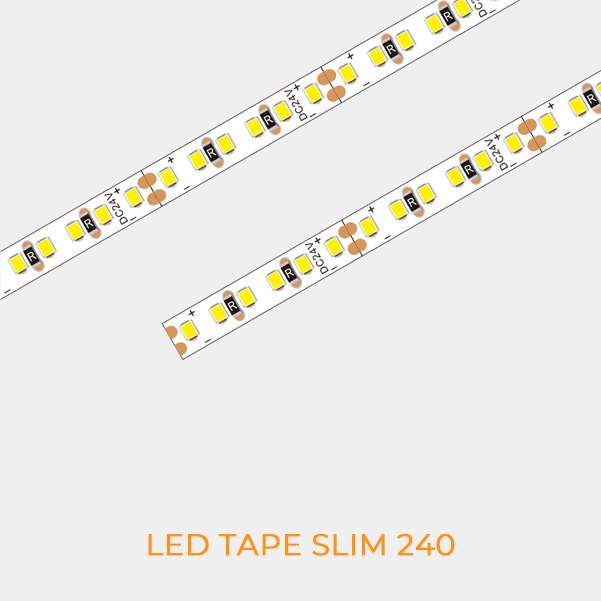

| LED TAPE SLIM 240 | DC24V | 2700K 3000K 4000K 6500K | 10W/M | 91.6lm/w | 25mm | ||
| LED TAPE SLIM 240 | DC24V | 2700K 3000K 4000K 6500K | 10W/M | 97.5lm/w | 25mm | ||

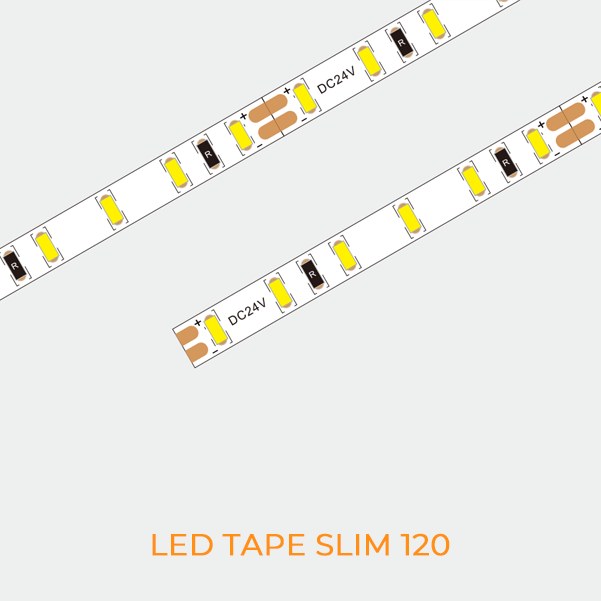

| LED TAPE SLIM 120 | DC24V | 2700K 3000K 4000K 6500K | 12W/M | 91.8lm/w | 50mm | ||
| LED TAPE SLIM 120 | DC24V | 2700K 3000K 4000K 6500K | 14.4W/M | 94.1lm/w | 50mm | ||
| LED TAPE SLIM 140 | DC24V | 2700K 3000K 4000K 6500K | 14.4W/M | 109.5lm/w | 50mm | ||
| LED TAPE SLIM 180 | DC24V | 2700K 3000K 4000K 6500K | 14.4W/M | 97.3lm/w | 33.34mm | ||
| LED TAPE SLIM 60 | DC5V | 2700K 3000K 4000K 6500K | 8W/M | 76.7lm/w | 16.67mm | ||
| LED TAPE SLIM 60 | DC24v | 2700K 3000K 4000K 6500K | 10W/M | 90.6lm/w | 100mm |
Dimensions & 3D View
