LED Strip
High Efficiency
High lumen efficacy, 120LM/W, 160LM/W, 200LM/W are optional. (ERP)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description

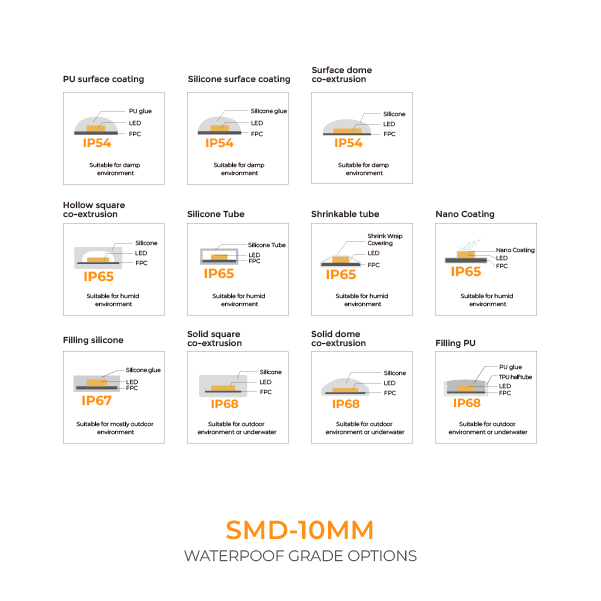

120LM/W, 160LM/W, 200LM/W are optional. It passed ERP requirements. SDCM≤3 to ensure color consistency. All LEDs use copper base and gold wire which provide good heat dispersion, long life span and low luminous decay. It is IP20, which can be upgraded to IP54, IP65, IP67 and IP68 protection.
Key Features
Lumen
High lumen efficacy, 120LM/W, 160LM/W, 200LM/W are optional.
ERP
It passed ERP requirements, ERP class B, C, D, E, F ,G are available.
LED SDCM3
Pure gold wire LED, long-life LED > 50,000 hrs, 1 Bin, CRI>90.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| LED TAPE HE 140 | DC24V | 4000K | 14.4W/M | 122lm/w | 50mm | ||
| LED TAPE HE 160 | DC24V | 4000K | 20W/M | 172.2lm/w | 50mm | ||
| LED TAPE HE 160 | DC24V | 4000K | 14.4W/M | 171lm/w | 50mm | ||
| LED TAPE HE 180 | DC24V | 4000K | 9W/M | 204lm/w | 50mm | ||
| LED TAPE HE 192 | DC24V | 4000K | 19.2W/M | 170lm/w | 41.67mm | ||
| LED TAPE HE 210 | DC24V | 4000K | 19.2W/M | 112lm/w | 33.33mm | ||
| LED TAPE HE 70 | DC24V | 4000K | 9.6W/M | 108lm/w | 100mm | ||
| LED TAPE HE 80 | DC24V | 4000K | 12W/M | 170.7lm/w | 100mm | ||
| LED TAPE HE 90 | DC24V | 4000K | 4.5W/M | 206lm/w | 100mm |

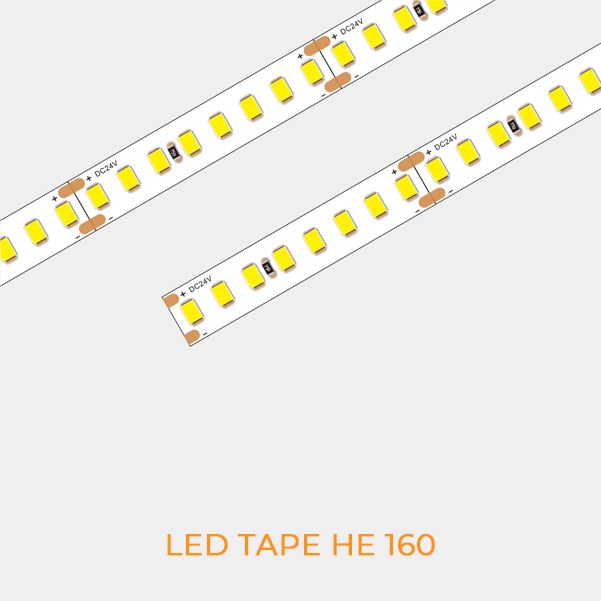

Dimensions & 3D View
