LED Strip
RGB & RGBW
Multiple colors changing, it supports smart control.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Color changing enables the creation of a diverse range of hues, shades, and color combinations to suit various applications. It offers vibrant and dynamic lighting effects and supports smart control. In RGBW, separate RGB+White LED or 4 in 1 LED are optional, White color≤SDCM3.
Key Features
Multiple Colors
RGB/RGBW optional.
Lighting Effects
It support smart control to achieve lighting effects such as breathing, gradient, jump, strobe, etc.
System
Complete accessories system including lighting controllers, remote, conectors, profiles, etc.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| LED TAPE RGB 30 | DC24V | R B G RGB | 7.2W/M | 166.6mm | |||
| LED TAPE RGB 60 | DC24V | R B G RGB | 14.4W/M | 100mm | |||
| LED TAPE RGB 96 | DC24V | R B G RGB | 23W/M | 62.5mm | |||
| LED TAPE RGB 120 | DC24V | R B G RGB | 24W/M | 50mm | |||
| LED TAPE RGB 120 | DC24V | R B G RGB | 10W/M | 50mm | |||
| LED TAPE RGB 120 | DC24V | R B G RGB | 12W/M | 50mm | |||
| LED TAPE RGB 240 | DC24V | R B G RGB | 24W/M | 25mm | |||
| LED TAPE RGB 60 | DC24V | R B G RGB | 12W/M | 50mm | |||
| LED TAPE RGB LONG RUN 15M | DC24V | R B G RGB | 11W/M | 100mm | |||
| LED TAPE RGB LONG RUN 50M | DC48V | R B G RGB | 9.4W/M | 166.7mm | |||
| LED TAPE RGBW 60 | DC24V | 4000K R B G RGBW | 14.4W/M | 166.6mm | |||
| LED TAPE RGBW 120 | DC24V | 4000K R B G RGBW | 28.8W/M | 100mm | |||
| LED TAPE RGBW 60 (4 in 1) | DC24V | 4000K R B G RGBW | 19.2W/M | 100mm | |||
| LED TAPE RGBW 84 (4 in 1) | DC24V | R B G O RGBA | 19.2W/M | 71.4mm | |||
| LED TAPE RGBW 96 (4 in 1) | DC24V | 4000K R B G RGBW | 24W/M | 62.5mm | |||
| LED TAPE RGBW 240 | DC24V | 4000K R B G RGBW | 19.2W/M | 50mm | |||
| LED TAPE RGBW 72 | DC24V | 4000K R B G RGBW | 12W/M | 166.6mm | |||
| LED TAPE RGBW LONG RUN 15M | DC24V | 4000K R B G RGBW | 11W/M | 100mm | |||
| LED TAPE RGBW LONG RUN 40M | DC48V | 4000K R B G RGBW | 12.5W/M | 166.7mm |

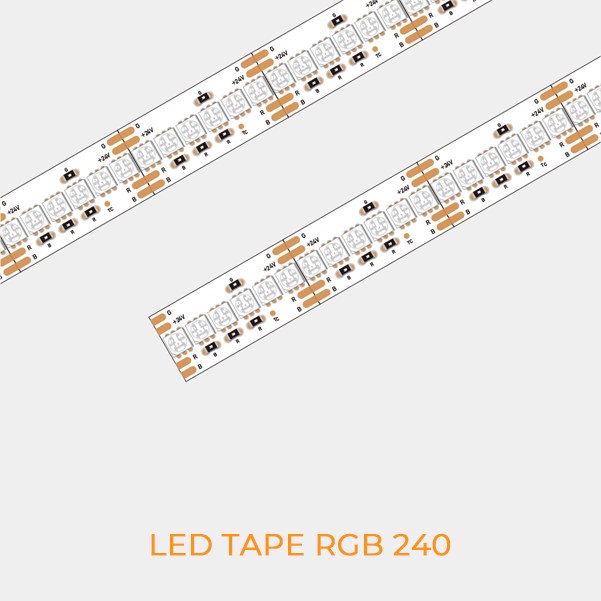

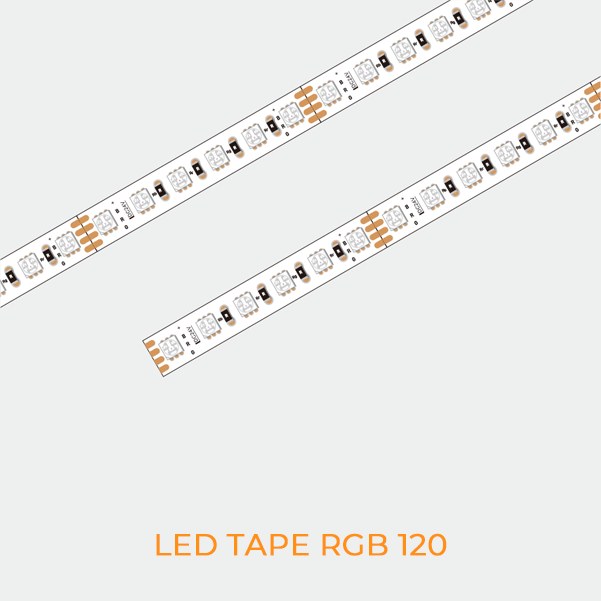

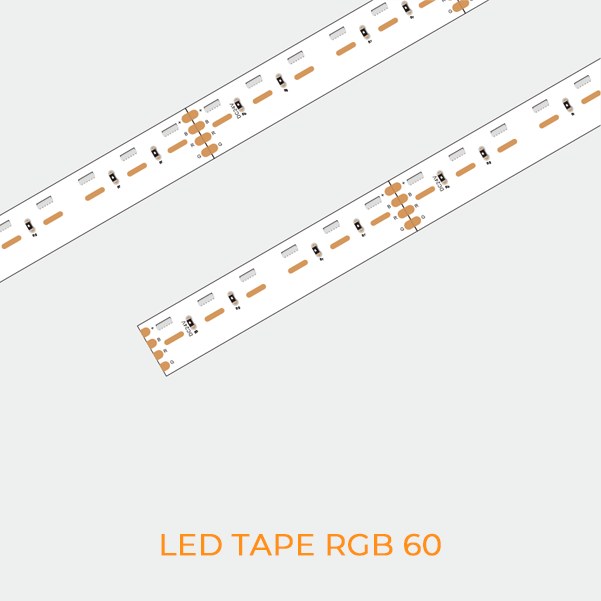

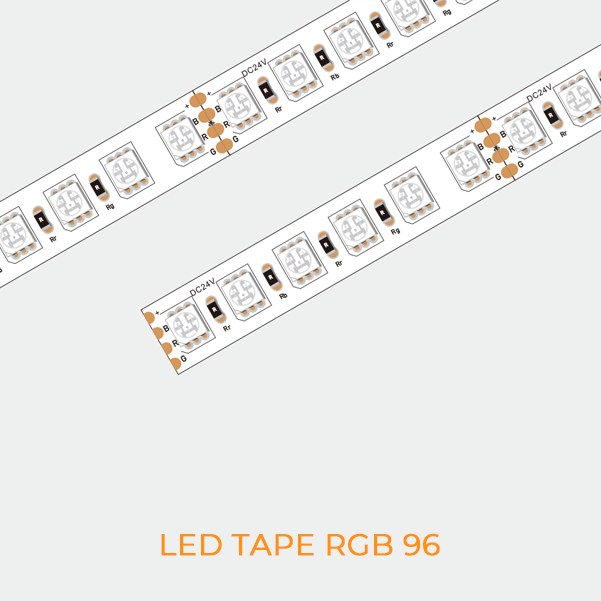

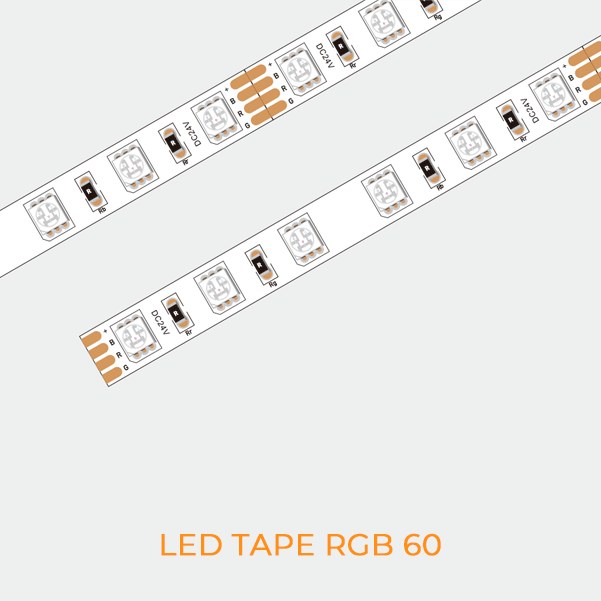

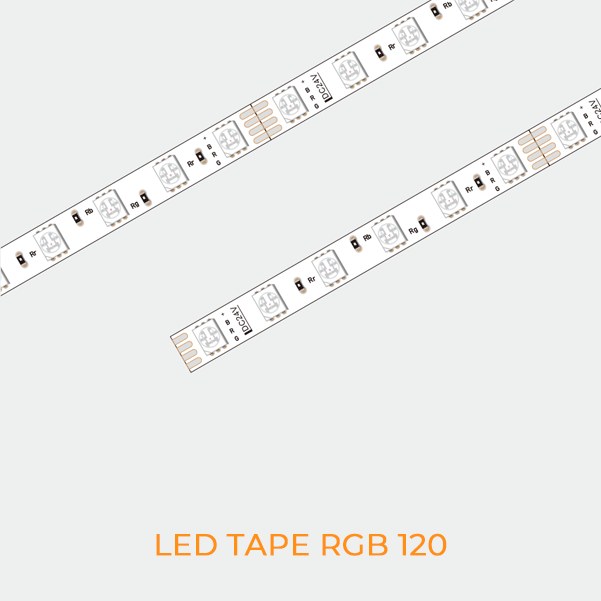

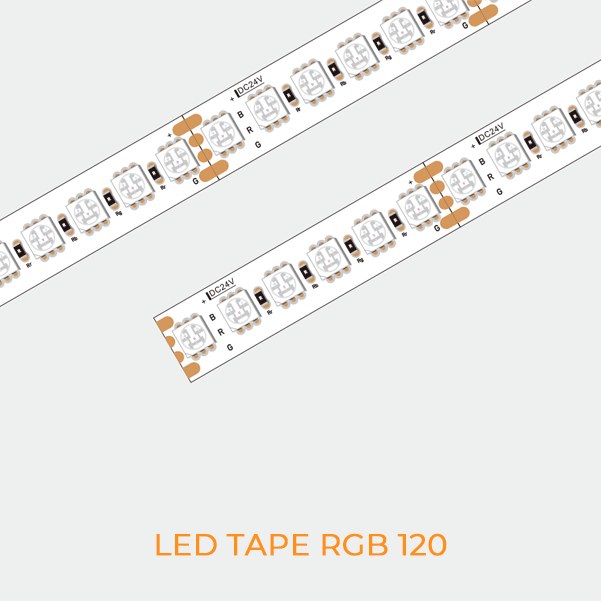

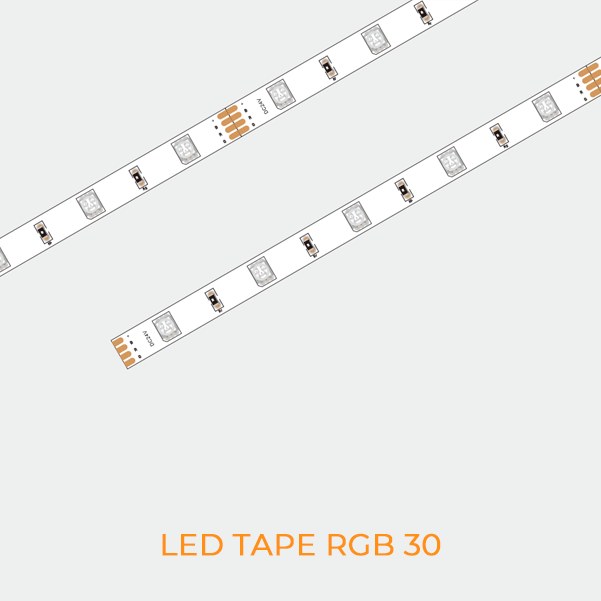

Dimensions & 3D View
