LED Strip
Pixel
Digital LED strip in white, RGB, RGBW by DMX512 or SPI control.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
To realize color-changing effects, gradients, chases, pulsating patterns, and animations. These effects can be easily programmed and synchronized for captivating visual displays.
Key Features
SPI
Options: IC SK6812, MT1809, WS2818, WS2811, UCS1903H. Single LED as 1 pixel, or 10 Pixels/M, 20 Pixels/M, 60 Pixels/M, etc.
DMX
By IC UCS512C4, compatible with international standard protocol DMX512 (1990), stronger anti-interference ability and longer transmission distance.
Installation
Complete accessories system including pixel controllers, remote, signals cable, conectors, profiles, etc.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| LED TAPE PIXEL RGB 60 | DC5V | DIGITAL RGB | 10.6W/M | 16.66mm | |||
| LED TAPE PIXEL RGB 60 | DC12V | DIGITAL RGB | 8W/M | 16.66mm | |||
| LED TAPE PIXEL RGB 60 | DC12V | DIGITAL RGB | 12W/M | 50mm | |||
| LED TAPE PIXEL RGB 120 | DC24V | DIGITAL RGB | 12W/M | 100mm | |||
| LED TAPE PIXEL RGBW 60 | DC5V | DIGITAL RGBW | 12W/M | 16.66mm | |||
| LED TAPE PIXEL 120 | DC24V | Digital 2700k-6500k | 14W/M | 100mm | |||
| LED TAPE PIXEL RGB 60 | DC24V | DIGITAL RGB | 14W/M | 100mm | |||
| LED TAPE PIXEL RGBW 60 | DC24V | 4000K DIGITAL RGBW | 18.5W/M | 100mm |

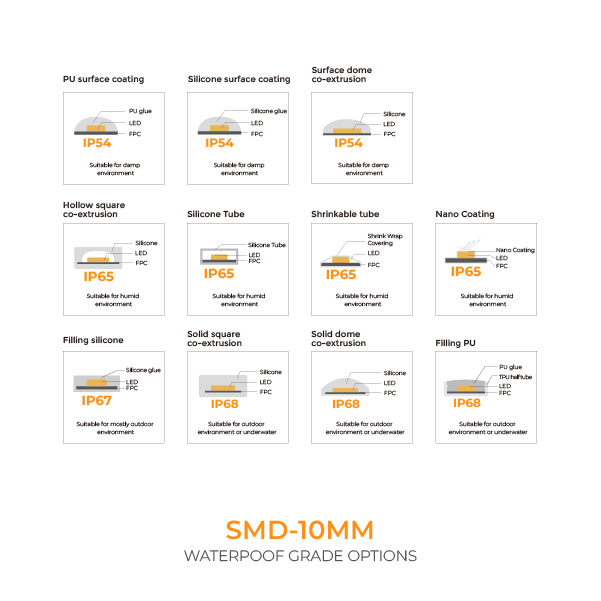

Dimensions & 3D View
