LED Strip
Long Run
One side power to drive 15M/20M/25M/50M.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Long Run Length offers continuous lighting. One side power to drive 15M/20M/25M/50M strip length. Constant current technology protects each LED against voltage drop, keeping same brightnees from the beginning to the end.
Key Features
Super Long Length
One side power to drive 15M/15M/25M/50M length.
Brightness
Consistent brightness from beginning to end.
PCB
Double-sided FPC rolled copper.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| LED TAPE LONG RUN 15M | DC24V | 2700K 3000K 4000K 6500K | 10.5W/M | 90lm/w | 100mm | ||
| LED TAPE LONG RUN 20M | DC24V | 2700K 3000K 4000K 6500K | 8.5W/M | 91.4lm/w | 100mm | ||
| LED TAPE LONG RUN 15M | DC24V | 2700K 3000K 4000K 6500K | 10W/M | 98.8lm/w | 50mm | ||
| LED TAPE LONG RUN 25M | DC24V | 2700K 3000K 4000K 6500K | 4.8W/M | 95.6lm/w | 100mm | ||
| LED TAPE LONG RUN 17M | DC24V | 2700K 3000K 4000K 6500K | 9.6W/M | 95lm/w | 50mm | ||
| LED TAPE LONG RUN 25M | DC48V | 2700K 3000K 4000K 6500K | 5.8W/M | 102.5 | 50mm | ||
| LED TAPE LONG RUN 20M | DC48V | 2700K 3000K 4000K 6500K | 8.8W/M | 102.9lm/w | 25mm | ||
| LED TAPE LONG RUN 50M | DC48V | 2700K 3000K 4000K 6500K | 4.2W/M | 107lm/w | 166mm | ||
| LED TAPE LONG RUN 50M | DC48V | 2700K 3000K 4000K 6500K | 5.2W/M | 103.3lm/w | 100mm |

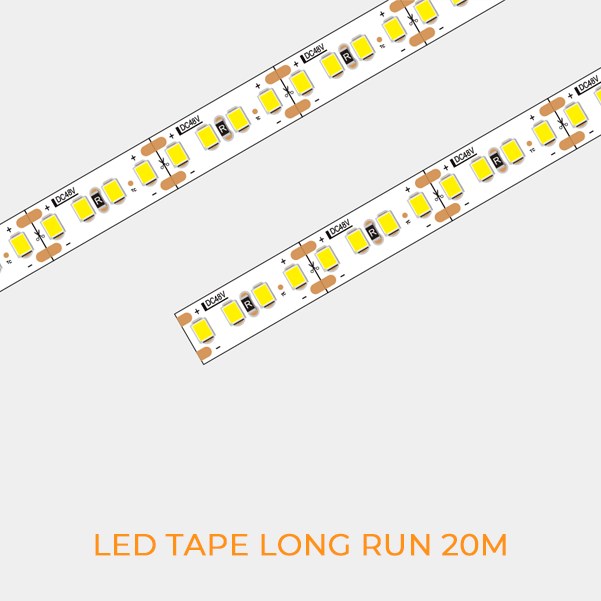

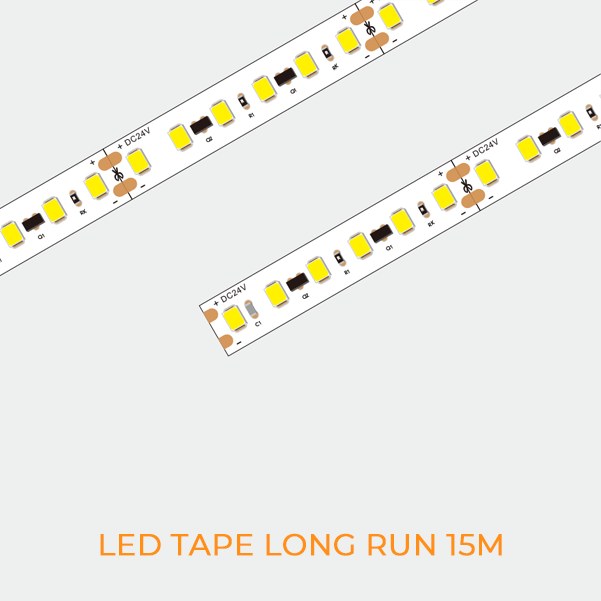

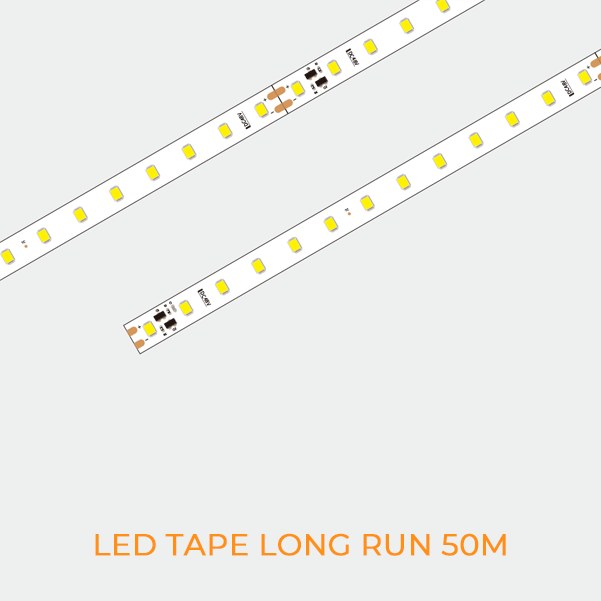

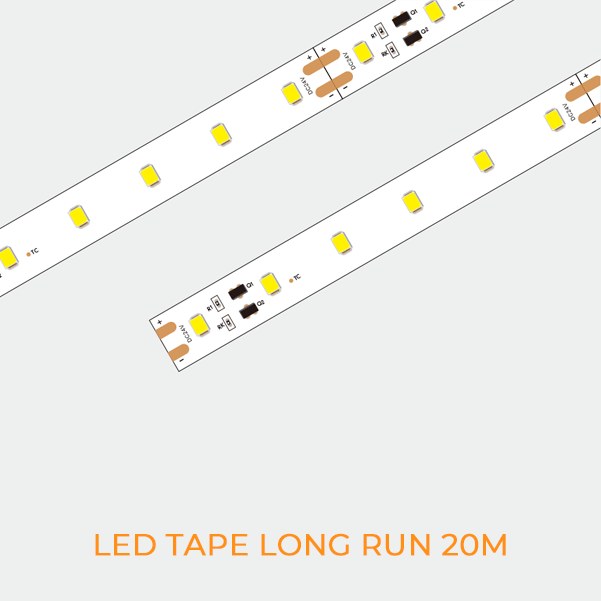

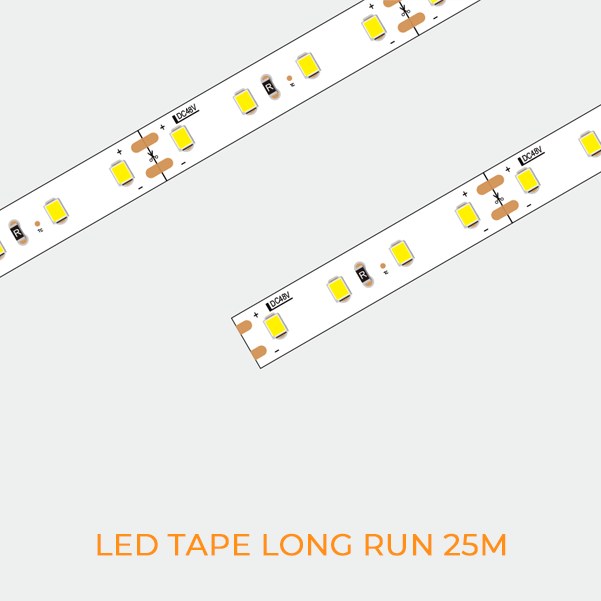

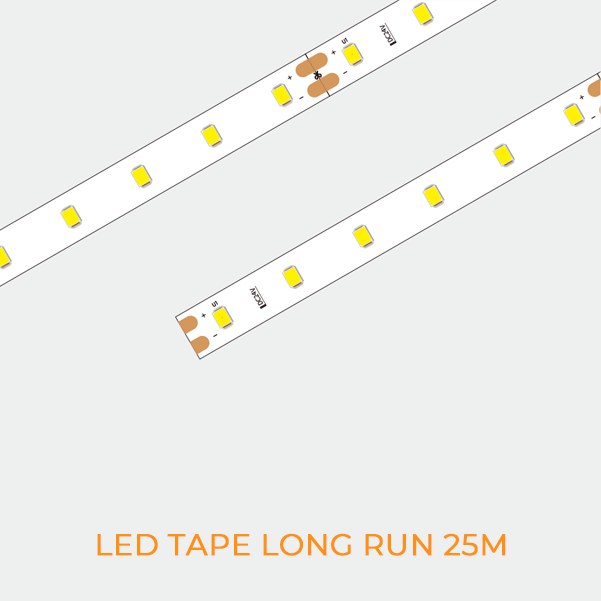

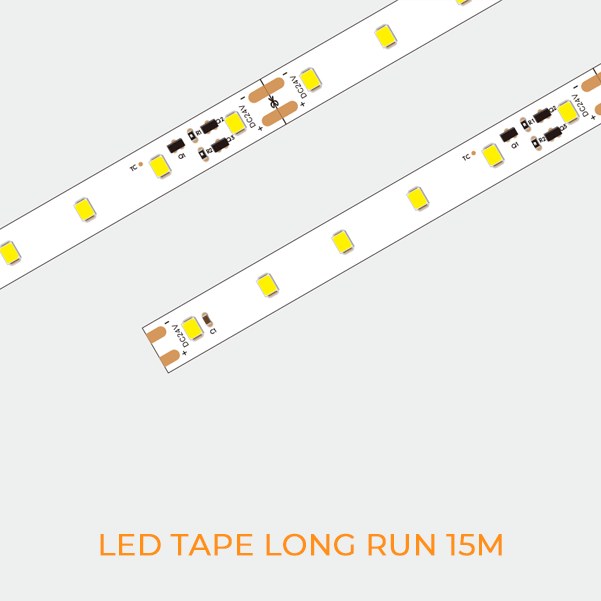

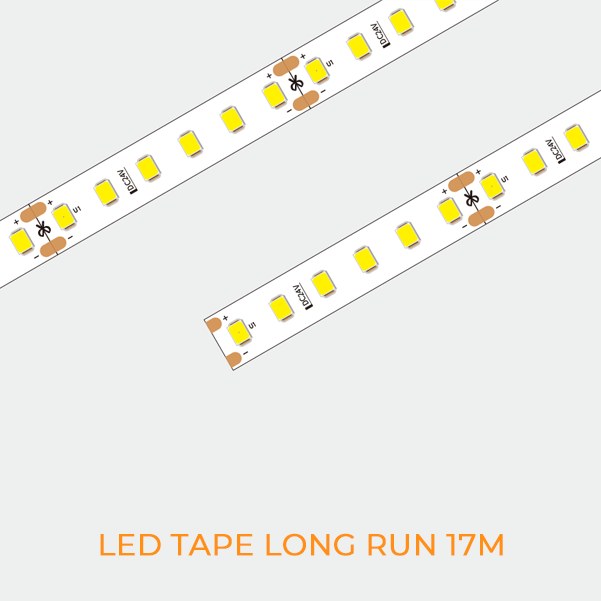

Dimensions & 3D View
