High Efficiency Neon
900LM/M high lumen efficiency LED neon. (IP67)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
ELITE HE is up to 900LM/M, high efficiency LED neon with uniform light and dimmable function. Long Run Length >10m, Production Length is up to 30m. Support freely configurable in length by small cutting increments for precise field installation. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
High Light Efficiency
Max. 950LM/M LED neon.
DIY Connector
Make the customized lengths by yourselves in minutes! Soldering free DIY connector designed for user which can support you cut our ELITE Neon and easily re-connect lead cable on site.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| ELITE HE 1615 TV | 16*15mm | DC24V | 2700K-6000K | 5W/10W/15W/M | 82lm/w | 50mm | IP67 |
| ELITE HE 1220 SV | 12*20mm | DC24V | 2700K-6000K | 5W/10W/15W/M | 61.0lm/w | 50mm | IP67 |
| ELITE HE 1212 TV | 12*12mm | DC24V | 2700K-6000K | 5W/10W/M | 93.0lm/w | 50mm | IP67 |

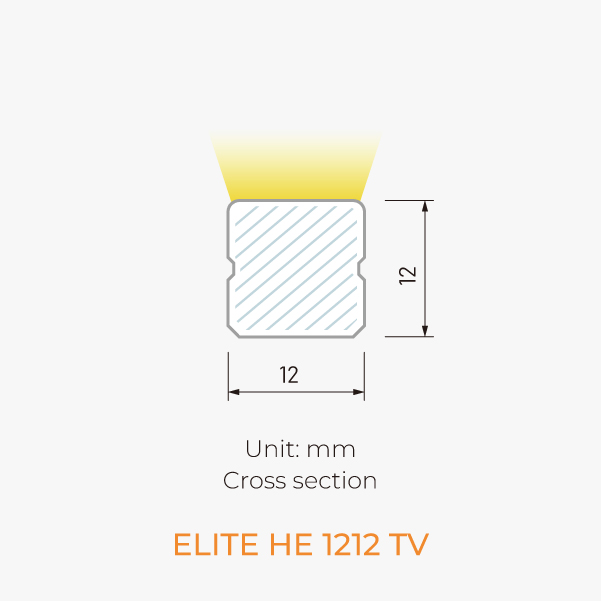

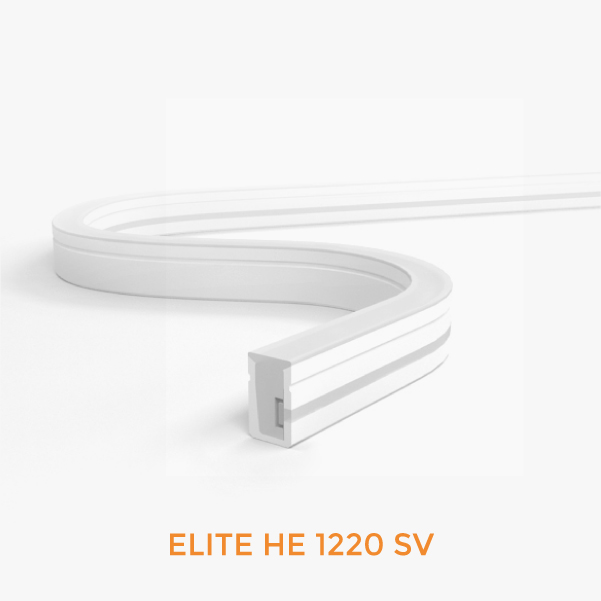

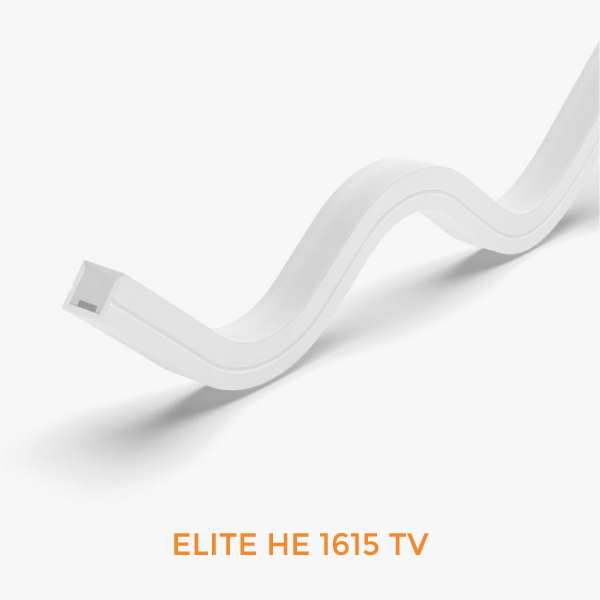

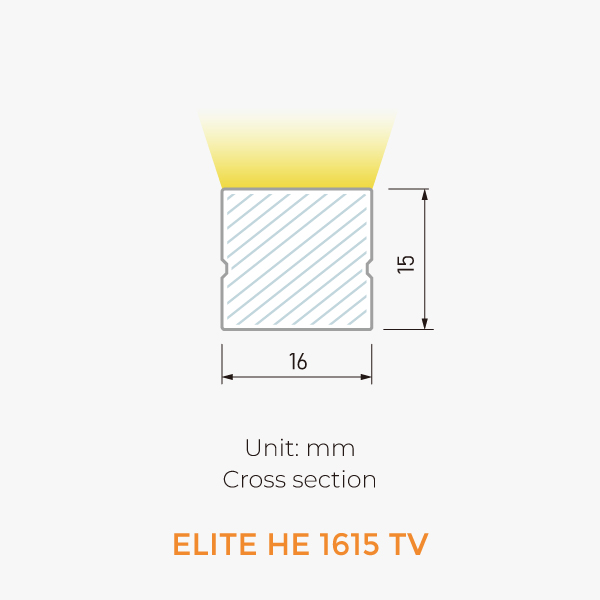

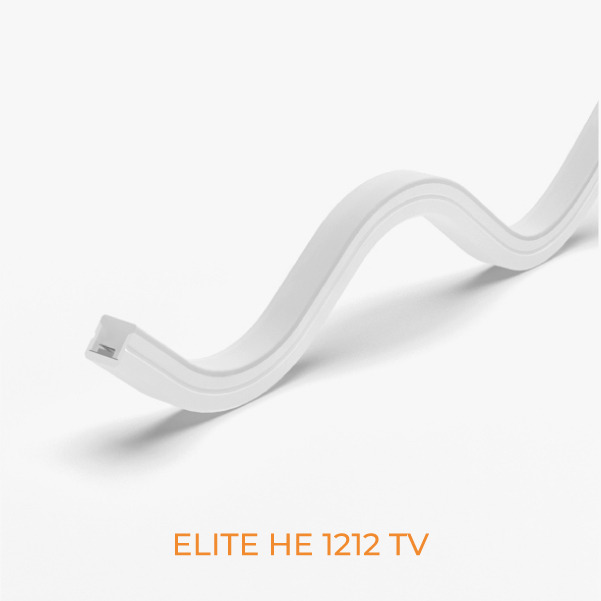

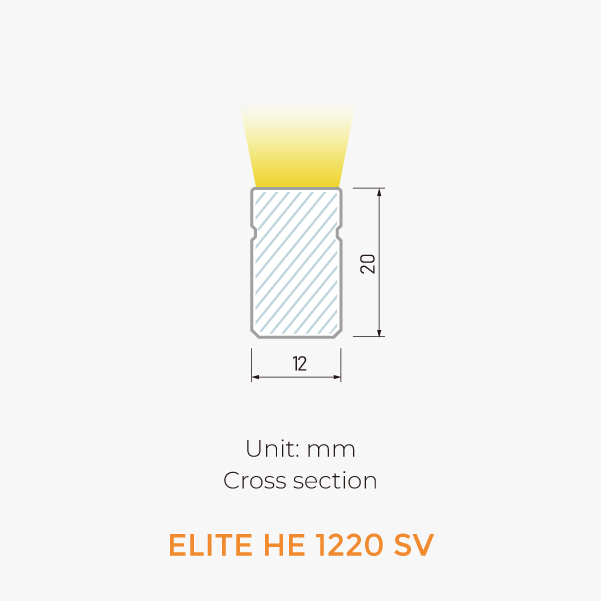

Dimensions & 3D View
