Elite Neon Top View
Vertical bend LED neon with completed accessories system. (IP67)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Vertical bending LED neon for indoor & outdoor use.Support freely configurable in length by small cutting increments for precise field installation. Flexible LED neon with uniform light and dimmable function. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, 1 Bin. Lumileds LED ≤ SDCM2, and final Neon ≤ SDCM3 are available.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
Continuous Light
One side power to drive Max.27m length in DC24V, the production length can be 30m/reel. It perfectly avoided the joints between in neon to offer you continuous and elegant light, reduced power supplies.
DIY Connector
Make the customized lengths by yourselves in minutes! Soldering free DIY connector designed for user which can support you cut our ELITE Neon and easily re-connect lead cable on site.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| ELITE 1617 TV | 16*17mm | DC24V | Single color ( CC ) Single color ( CV ) RGBW Pixel DMX512 1800K-6500K RGB RGBW CCT | 5W/10W/15W/M | 89.6 | 50/10/71.43/83.3/125 | IP67 |
| ELITE 1615 TV | 16*15mm | DC24V | 2100K-6000K R B G RGB RGBW CCT DIGITAL | 5W/10W/15W/M | 57.3lm/w | 50/62.5mm | IP67 |
| ELITE 1212 TV | 12*12mm | DC24V | 2100K-6000K R B G RGB CCT DIGITAL | 5W/10W/M | 67.7lm/w | 50/62.5mm | IP67 |
| ELITE 1010 TV (3-side light) | 10*10mm | DC24V | 2100K-6000K R B G | 5W/10W/M | 82.9lm/w | 35.7mm | IP67 |
| ELITE 1010 TV | 10*10mm | DC24V | 2400K-6500K R B G RGB CCT DIGITAL | 5W/10W/M | 84lm/w | 50/62.5mm | IP67 |
| ELITE 0606 TV | 6*6mm | DC24V | Yellow 2700K 3000K 3500K 4000K 5000K 6500K R B G O | 6W/M | 84.7lm/w | 25mm | IP44/65 |
| ELITE 2016 TV | 20*16mm | DC24V | 2100K-6000K R B G RGB RGBW CCT | 5W/10W/15W/M | 63lm/w | 50/62.5mm | IP67 |
| ELITE 2020 TV | 20*20mm | DC24V | 2700K-6500K R B G RGB RGBW CCT | 10W/15W/M | 52.9lm/w | 50/62.5mm | IP67 |
| ELITE 3020 TV | 30*20mm | DC24V | 2100K-6000K R B G RGB RGBW CCT | 16W/20W/24W/M | 64.0lm/w | 41.7/50mm | IP67 |
| ELITE 5025 TV | 50*25mm | DC24V | 2100K-6000K R B G RGB RGBW CCT | 15W/M | 57.9lm/w | 41.7/50mm | IP67 |

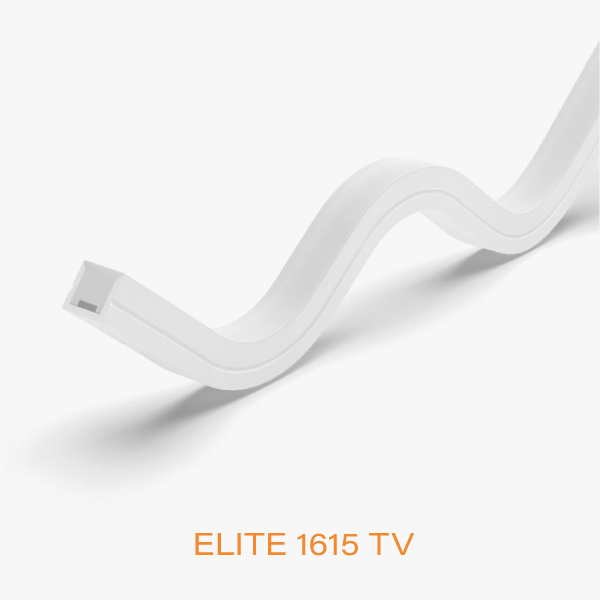

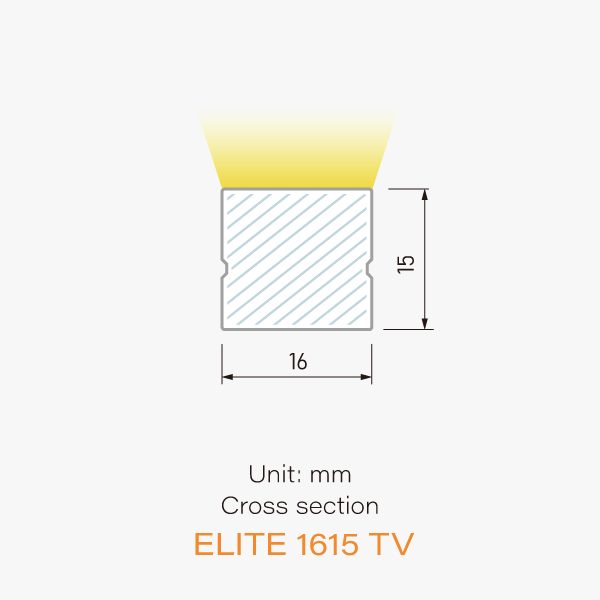

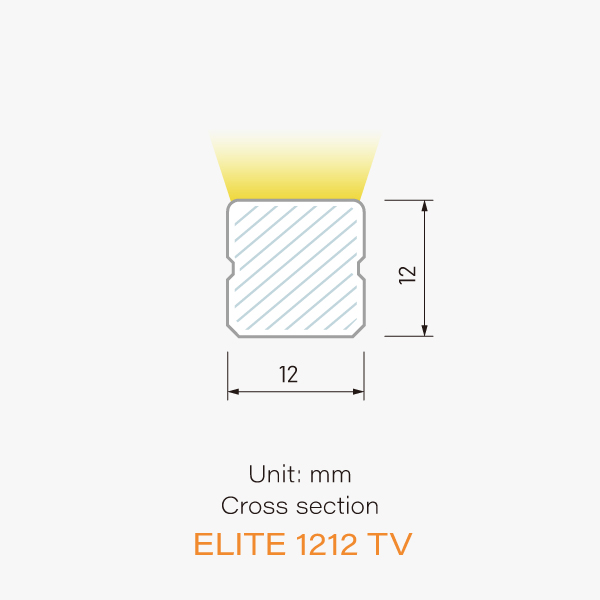

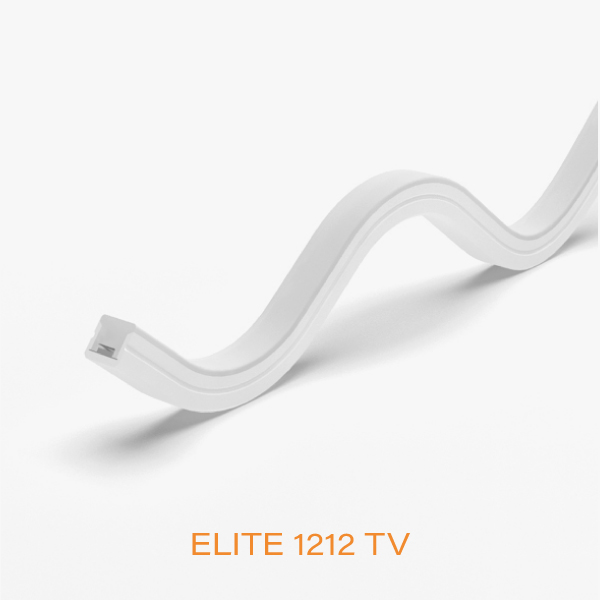

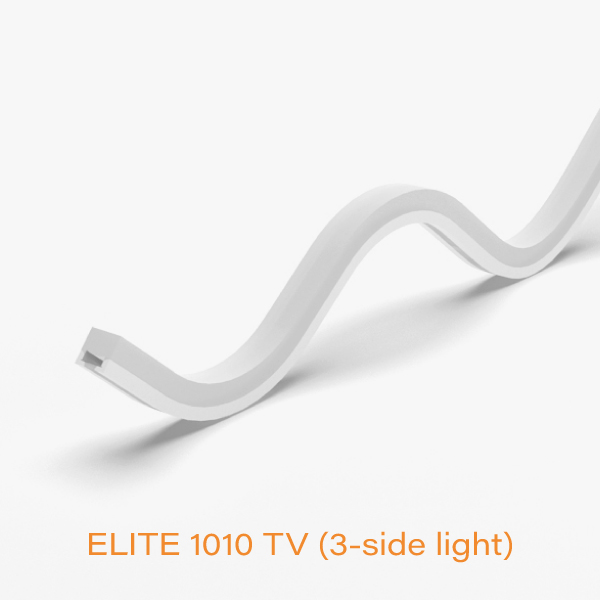

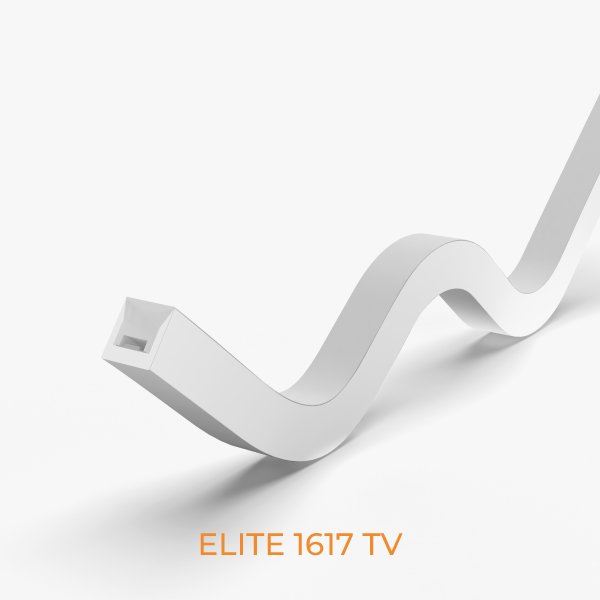

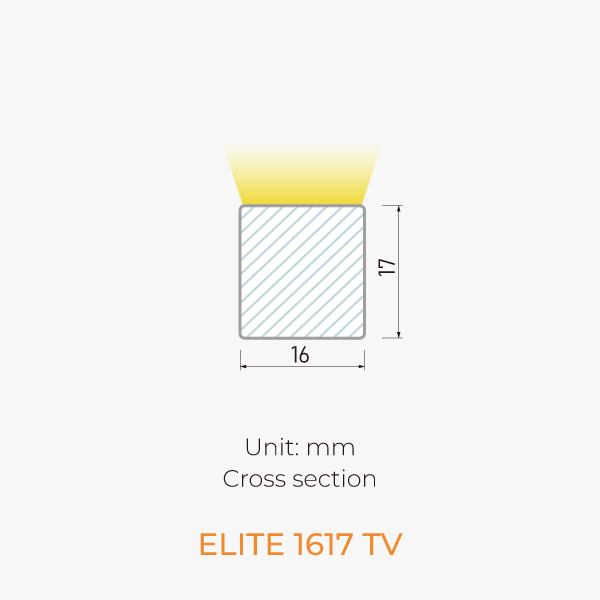

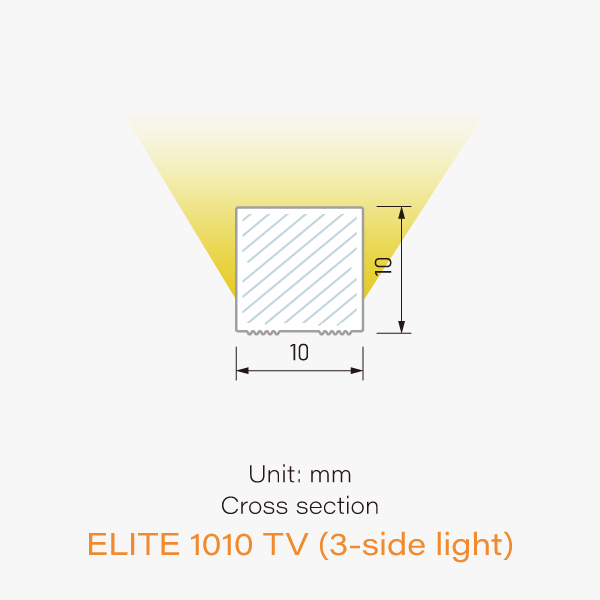

Dimensions & 3D View
