Agile 3D Neon
3D bend, both bending directions in vertical & horizontal. (IP67)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Vertical & horizontal bending LED neon for indoor & outdoor use. 1 model product to cover 2 bending direction of neon will help you easier products management and achieve more filexible installation on site. Because AGILE 3D support freely configurable in length by small cutting increments for precise field installation. Flexible LED neon with uniform light and dimmable function. And dust-free matt finish is optional.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
LED SDCM2
Long-life LED > 50,000 hrs, 1 Bin, Lumileds LED ≤ SDCM2.
Safe 3D Bend
Flexible vertical & horizontal bending by double protection of PCB anti-broken technology.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| AGILE 1617 3D-Ver.2.0 | 16*17mm | DC24V | RGBW Pixel DMX512 RGB RGBW CCT Single Color | 5/10/15W/M | 68lm/w | 50mm | IP67 |
| AGILE 1010 3D | 10*10mm | DC24V | 2700K-6500K R B G | 10W/M | 50.6lm/w | 35.7mm | IP67 |
| AGILE 1615 3D | 16*15mm | DC24V | 2100K-6000K R B G | 5W/10W/M | 75.1lm/w | 50mm | IP67 |
| AGILE 1617 3D | 16*17mm | DC24V | R B G RGB RGBW CCT Single Color | 10W/M | 81.2lm/w | 50mm | IP67 |

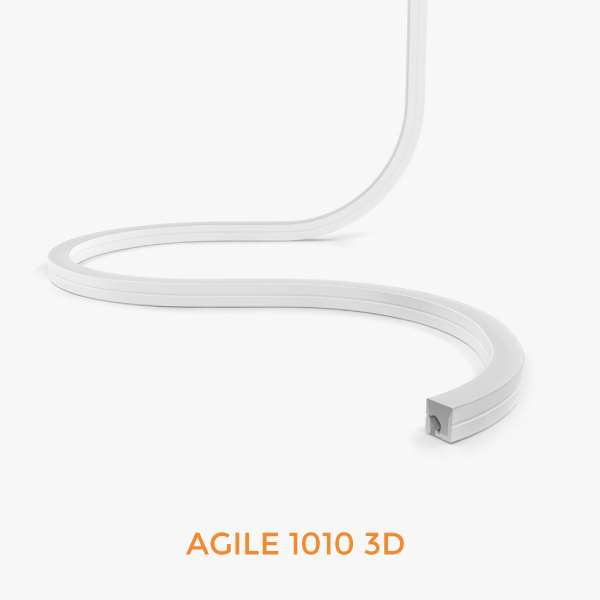

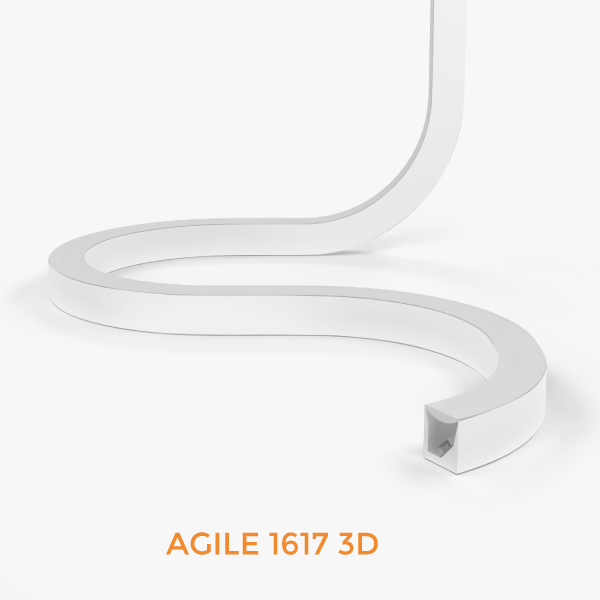

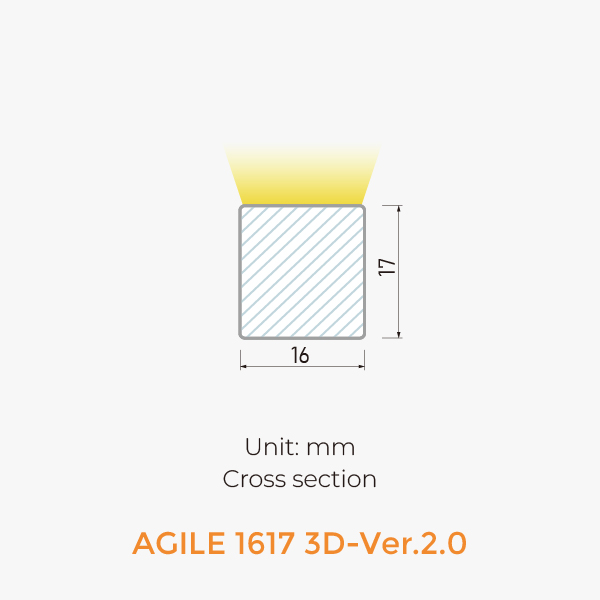

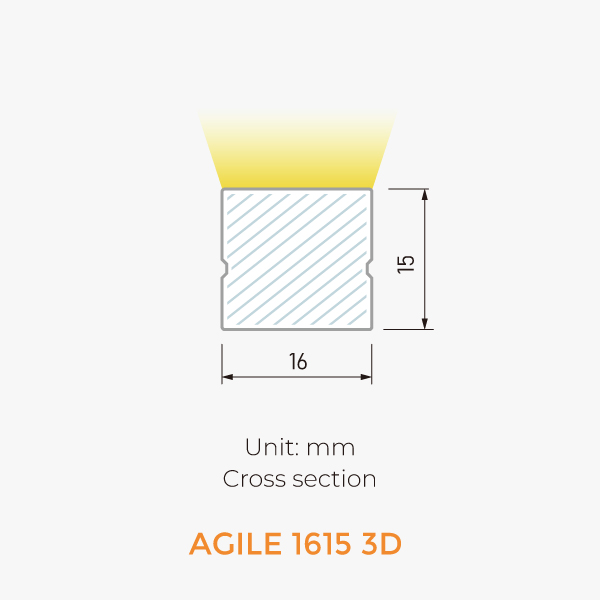

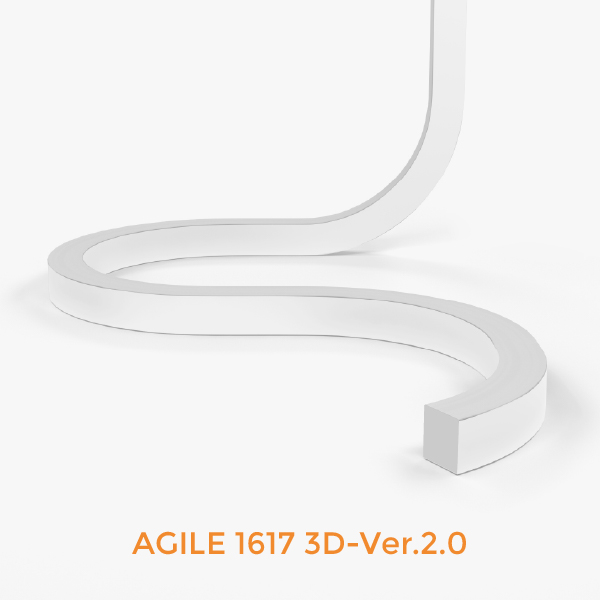

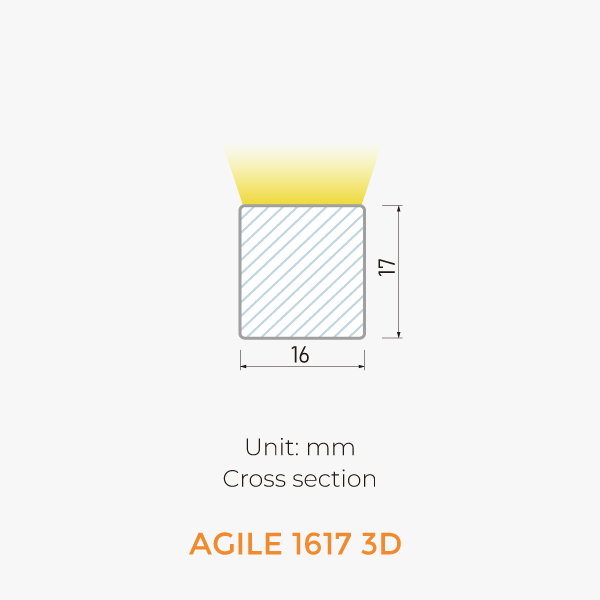

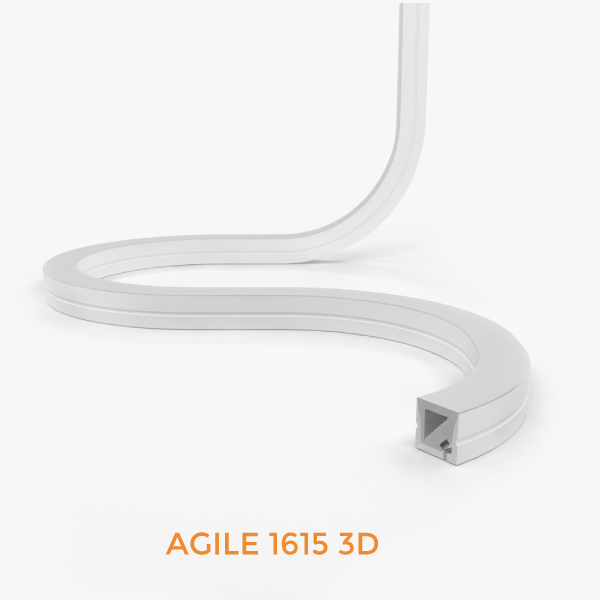

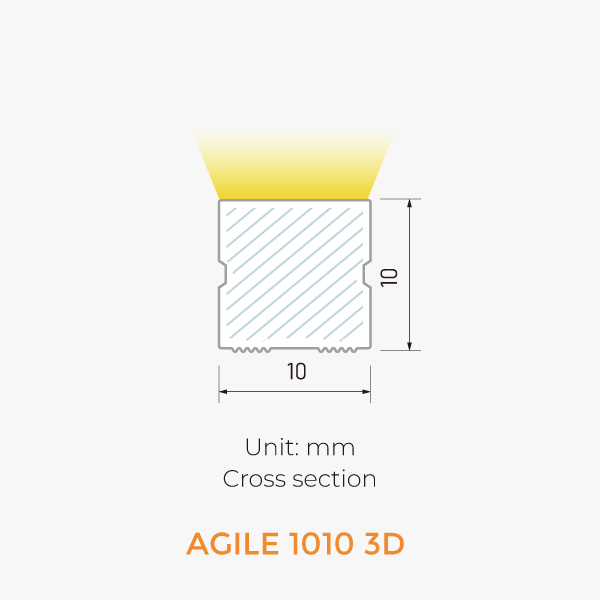

Dimensions & 3D View
