LED Neon
Recessed Neon
Designed for recessed installation without profiles. (IP44)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
RECE is designed for recessed installation without profiles. Long Run Length >10m, Production Length is up to 30m. Support freely configurable in length by small cutting increments for precise field installation. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
LED SDCM3
Pure gold wire LED, long-life LED > 50,000 hrs, 1 Bin, CRI>90.
Recessed Design
There is no need for profiles, it can be embedded installation directly.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| RECE 1615 TV | 16*15mm | DC24V | 2400K-6000k R B G RGB RGBW CCT DIGITAL | 10W/M | 66.3lm/w | 50/62.5mm | IP44 |
| RECE 1212 TV | 12*12mm | DC24V | 2700K-6500K R B G RGB RGBW CCT DIGITAL | 10W/M | 57.1lm/w | 50/62.5mm | IP44 |
| RECE 0606 TV | 6*6mm | DC24V | 1800K-6000K R B G | 6W/M | 66.2lm/w | 25mm | IP44 |
| RECE 1220 SV | 12*20mm | DC24V | 2400K-5800K R B G RGB RGBW CCT DIGITAL | 10W/M | 40.7lm/w | 50/62.5mm | IP44 |
| RECE 0817 SV | 8*17mm | DC24V | 2700K-6500K R B G RGB CCT DIGITAL | 10W/M | 40.5lm/w | 50/62.5mm | IP44 |
| RECE 0612 SV | 6*12mm | DC24V | 2700K-6500K R B G RGB CCT | 5W/10W/M | 30.3lm/w | 50/62.5mm | IP44 |

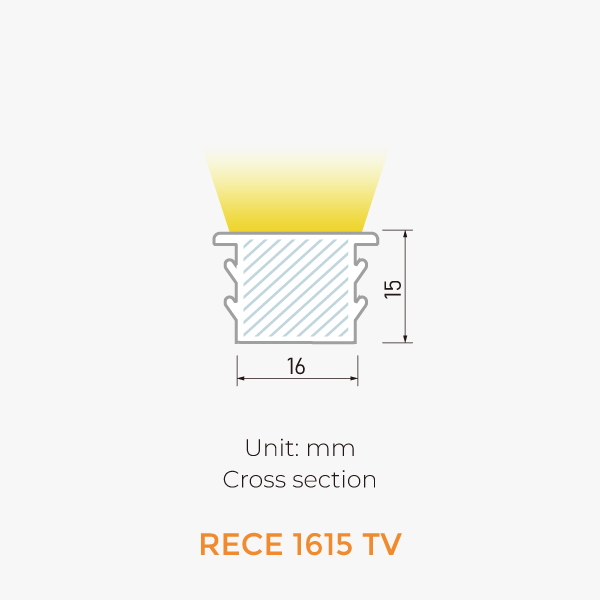

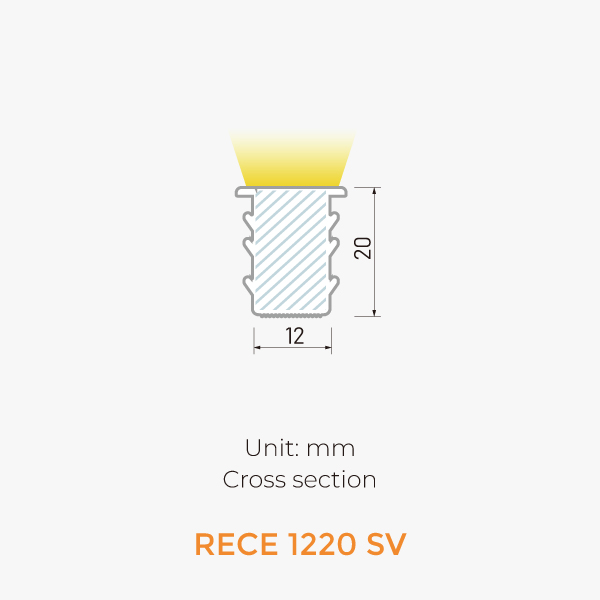

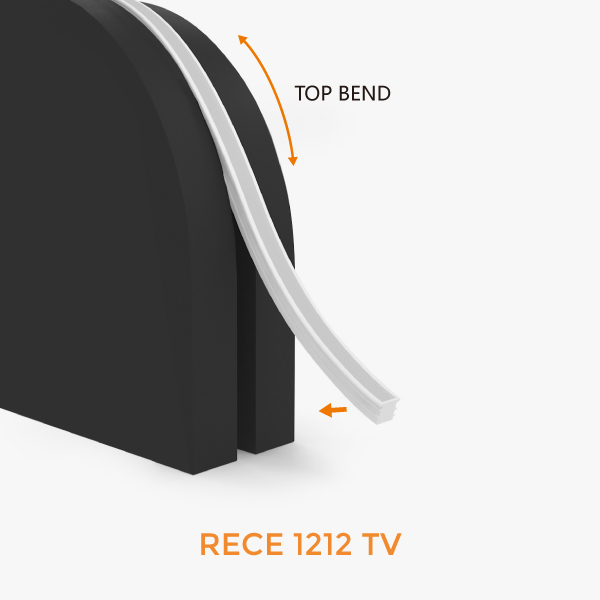

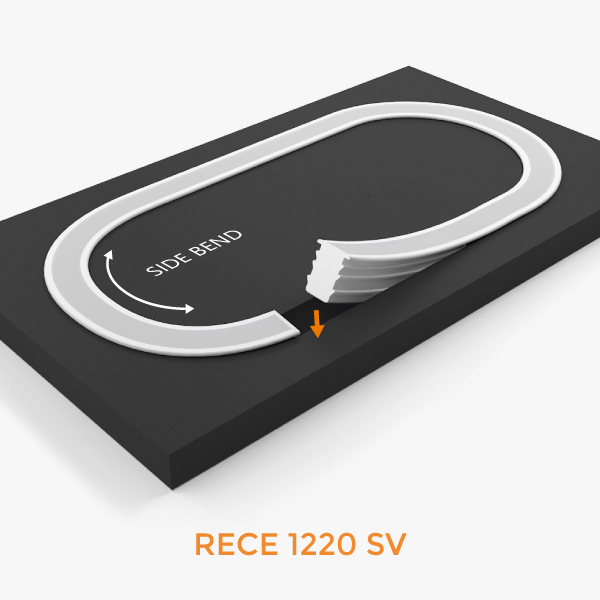

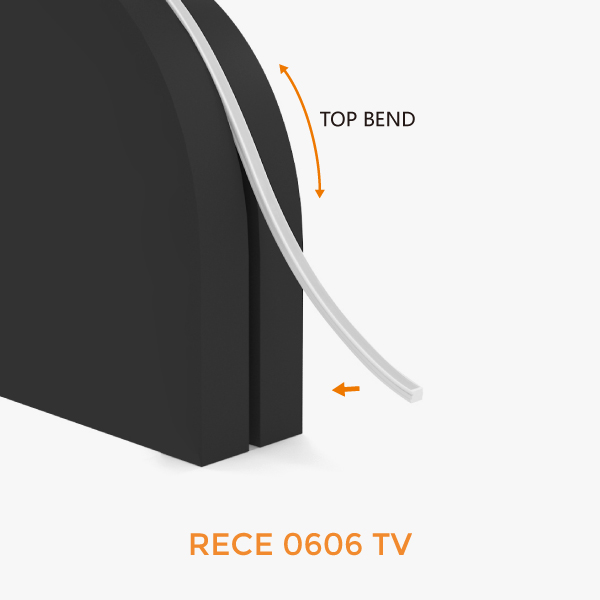

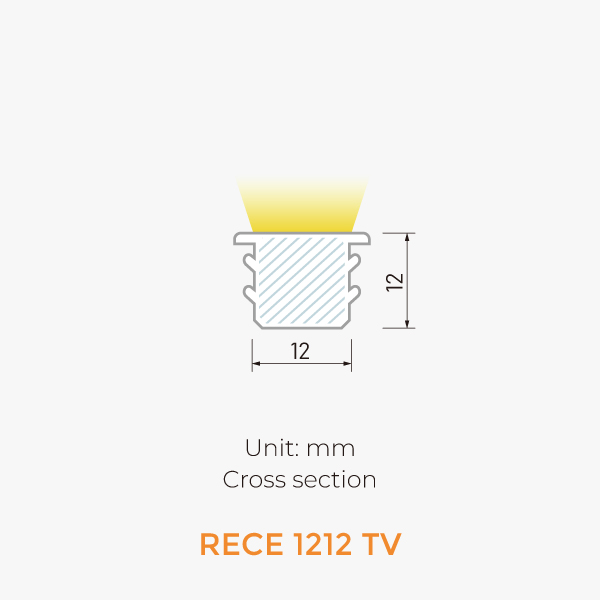

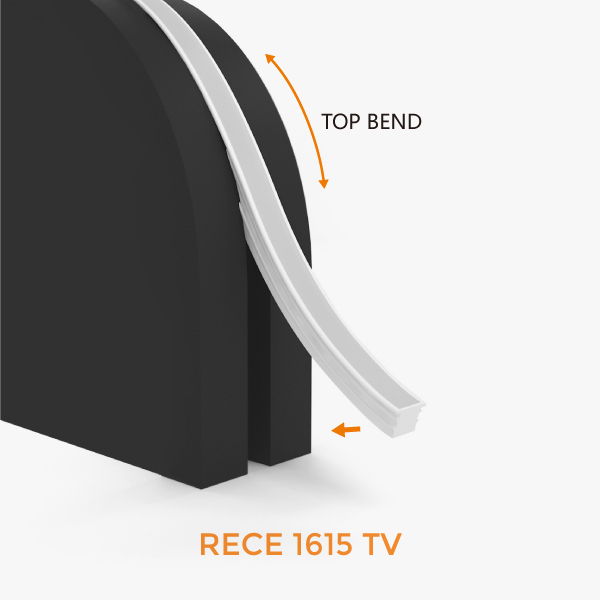

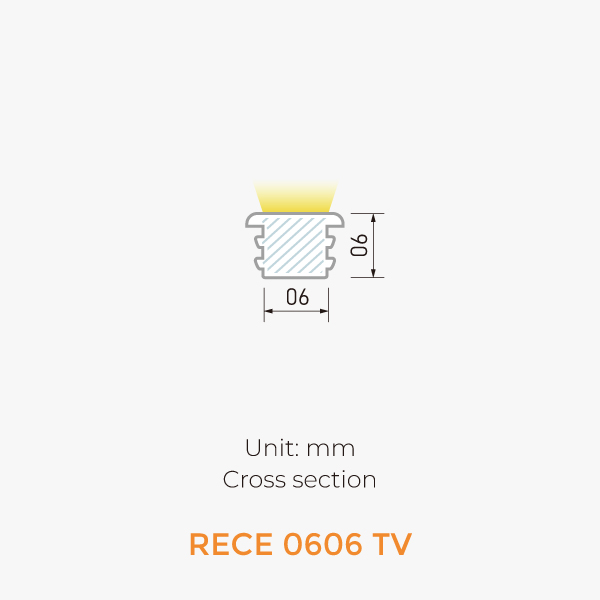

Dimensions & 3D View
