Pixel Neon
Digital LED neon in white, RGB, RGBW by DMX512 or SPI control. (IP67)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Colorful digital LED neon in white color, RGB, RGBW with completed accessories system to help you easily set up. It can controlled by SPI or DMX512, the signals connection is stable and quick. To realize color-changing effects, gradients, chases, pulsating patterns, and animations. These effects can be easily programmed and synchronized for captivating visual displays.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
DMX & SPI
Digital LED neon in white color, RGB, RGBW by DMX512 or SPI control.
Installation
Complete accessories system including pixel controllers, remote, signals cable, conectors, profiles, etc.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| DUAL PIXEL 1615 TV | 16*15mm | DC24V | DIGITAL RGB DIGITAL RGBW | 12W/15W/M | 125mm | IP67 | |
| ELITE PIXEL 1220 SV | 12*20mm | DC24V | DIGITAL RGB DIGITAL RGBW | 12W/14.5W/15W/M | 125mm | IP67 | |
| ELITE PIXEL 1225 SV | 12*25mm | DC24V | DIGITAL RGB DIGITAL RGBW | 12W/14.5W/15W/M | 125mm | IP67 | |
| ELITE 1617 TV | 16*17mm | DC24V | DIGITAL RGBW | 5/15W/M | 125mm | IP67 | |
| ELITE 1617 SV | 16*17mm | DC24V | DIGITAL RGBW | 5/15W/M | 125mm | IP67 | |
| ELITE PIXEL 1615 SV | 16*15mm | DC24V | DIGITAL RGB DIGITAL RGBW | 12W/14.5W/15W/M | 125mm | IP67 | |
| ELITE PIXEL 1010 TV | 10*10mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| ELITE PIXEL 1212 TV | 12*12mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| ELITE PIXEL 1212 SV | 12*12mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| ELITE PIXEL 0817 SV | 8*17mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| ELITE PIXEL 0612 SV | 6*12mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| DOME PIXEL D16 TV | 16*15.5mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| OMNI PIXEL 25 | 25mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 | |
| DUAL PIXEL 1612 SV | 16*12mm | DC24V | DIGITAL RGB | 12.5W/M | 100mm | IP67 |

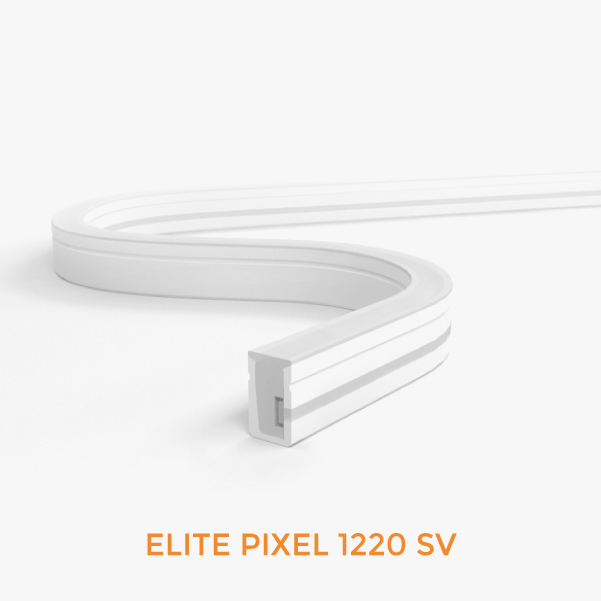

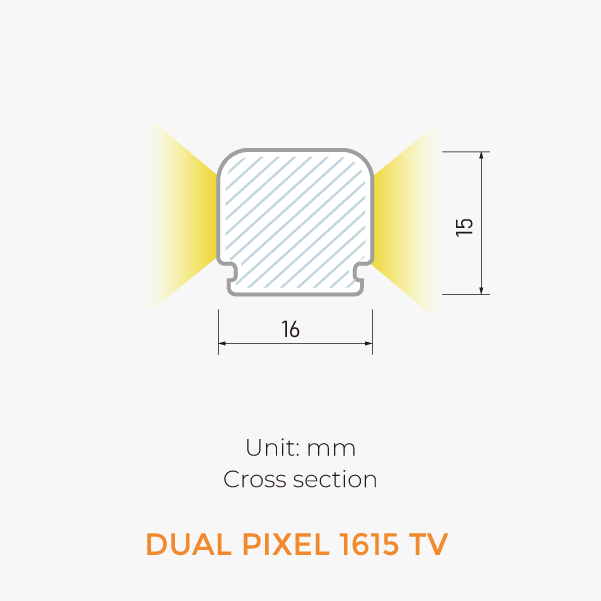

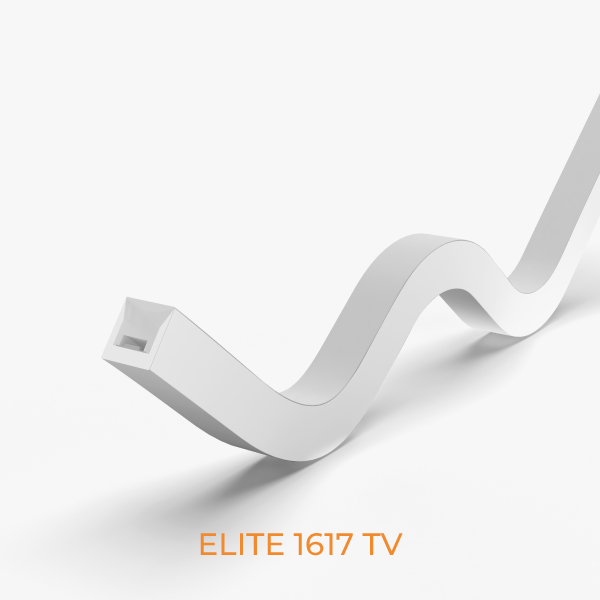

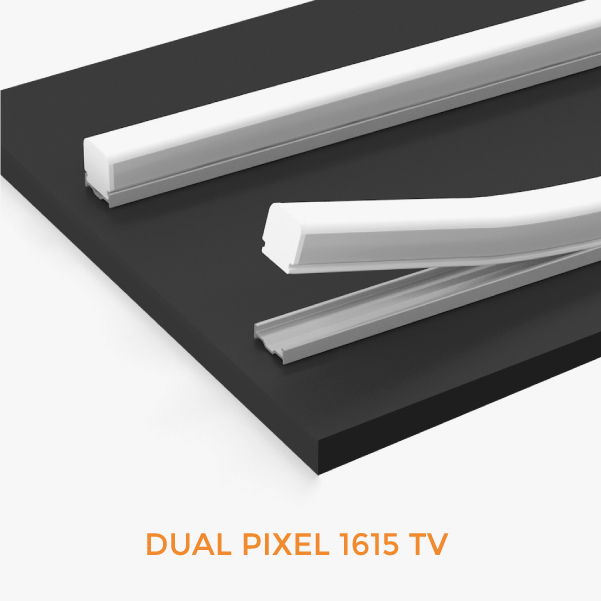

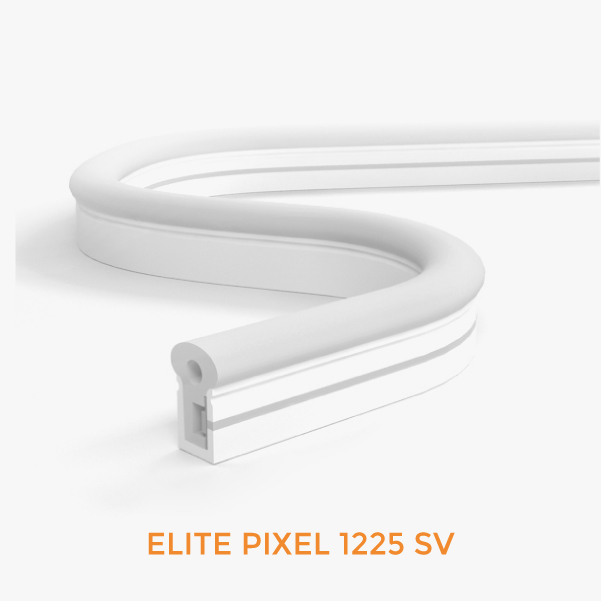

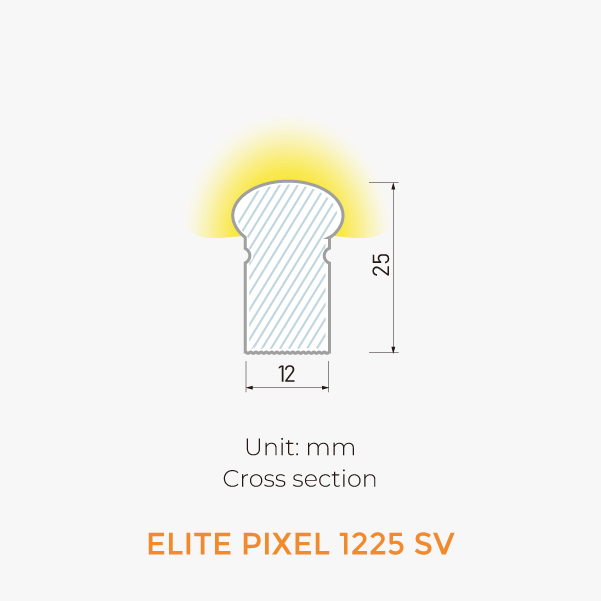

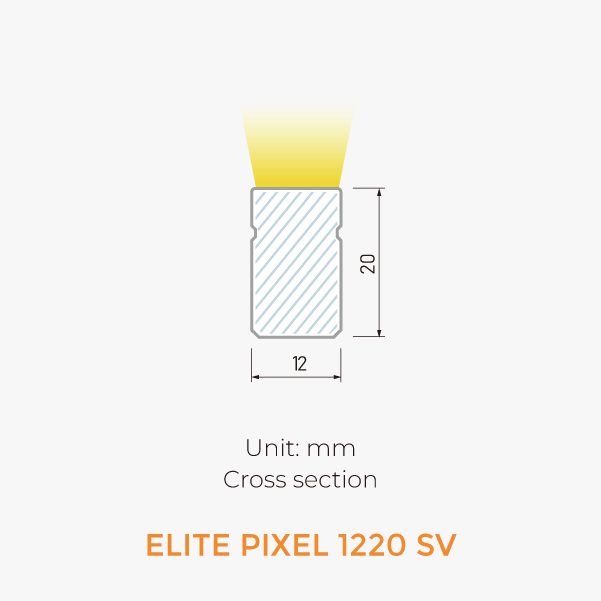

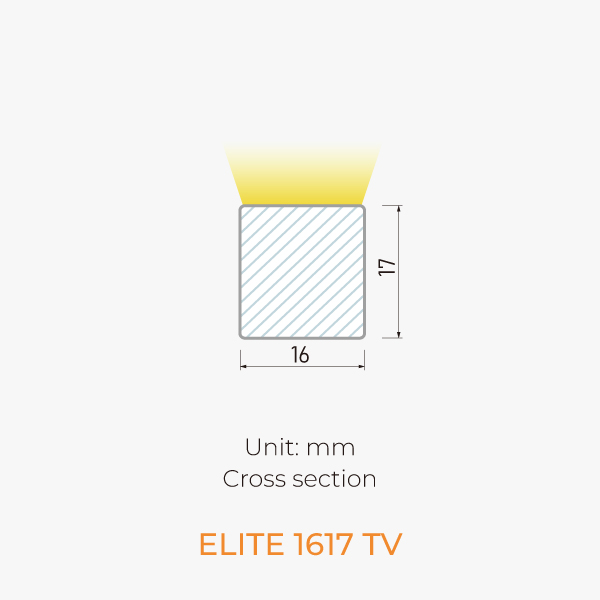

Dimensions & 3D View
