COB Strip
Pixel
Digital COB strip in white, RGB, RGBW by SPI control.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Pixel WHITE/RGB/RGBW color changing in 180°beam angle. SPI control by IC WS2811. To realize color-changing effects, gradients, chases, pulsating patterns, and animations. These effects can be easily programmed and synchronized for captivating visual displays.
Key Features
HD
Higher density of LEDs, from 720LEDs/m to 896LEDs/m resulting in a brighter and more uniform light output.
SPI
Digital COB strip in white color, RGB, RGBW by SPI control, IC WS2811.
Installation
Complete accessories system including pixel controllers, remote, signals cable, conectors, profiles, etc.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|

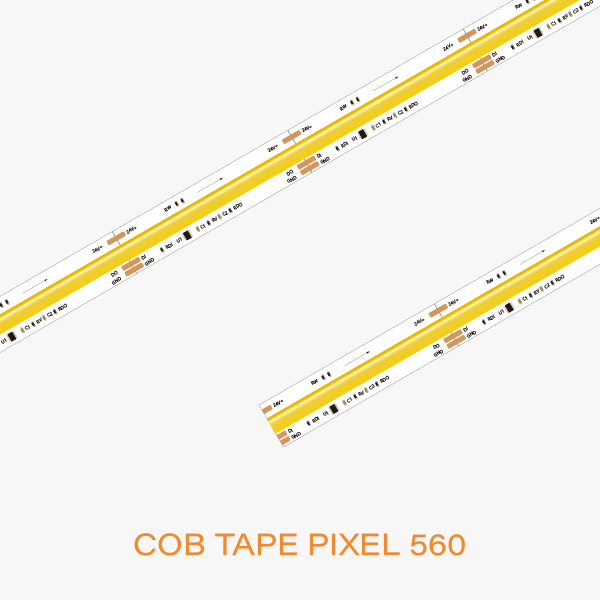

| COB TAPE PIXEL 560 | DC24V | 2700K 3000K 4000K 6500K | 12W/M | 50mm | |||

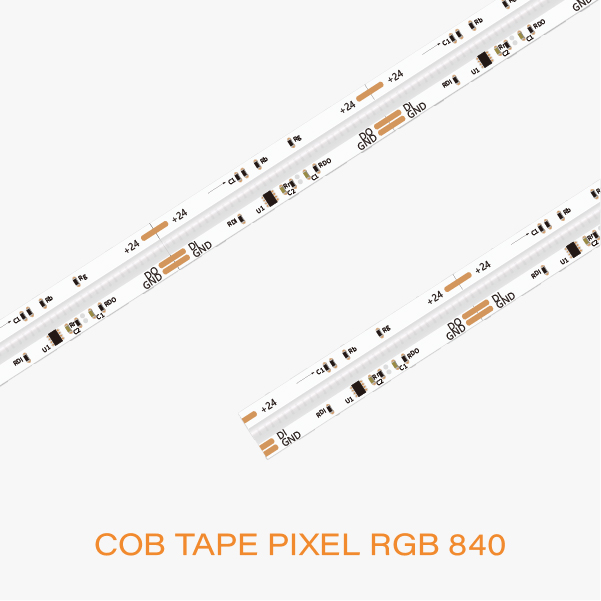

| COB TAPE PIXEL RGB 840 | DC24V | DIGITAL RGB | 12/22W/M | 50mm | |||

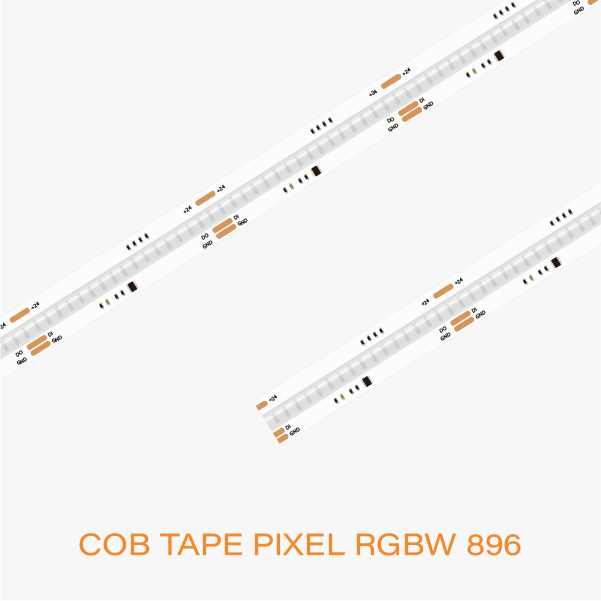

| COB TAPE PIXEL RGBW 896 | DC24V | DIGITAL RGBW | 24W/M | 62.5mm |
Dimensions & 3D View
