COB Strip
Single Color
180° beam angle COB strip offers 1800K-6500K.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Higher density of LEDs, resulting in a brighter and more uniform light output. 180°beam angle and small cuttable length to support freely configurable in length for precise field installation. SDCM≤3 to ensure color consistency.
Key Features
Various CCT
From 1800K to 6500K, Red/Green/Blue/Yellow/Orange/Pink and other colored lights optional.
SDCM3
Ensure color consistency, 1 Bin, CRI>90.
Free Cut
Part of items support free cutting.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| COB TAPE 960 | DC24V | 2700K 3000K 4000K 6500K | 25W/M | 118lm/w | 50mm | ||
| COB TAPE 480(48v) | DC48V | 2700K 3000K 4000K 6500K | 5/10/15W/M | 125lm/w | 100mm | ||
| COB TAPE 480(12v24v) | DC12/24V | 2700K 3000K 4000K 6500K | 5/10/15W/M | 125lm/w | 25/50mm | ||
| COB TAPE 480(5v) | DC5V | 2700K 3000K 4000K 6500K | 5W/M | 61lm/w | 10.4mm | ||
| COB TAPE 480(6mm) | DC24V | 2700K 3000K 4000K 6500K | 5/10W/M | 120lm/w | 50mm | ||
| COB TAPE 480 (Colors)(10mm) | DC12/24V | Plastic Pink Purple Blue Yellow R G O Marrs Green Tiffany Blue | 5/10/15W/M | 97lm/w | 25/50mm | ||
| COB TAPE FREE CUT 480(10mm) | DC12/24V | 2700K 3000K 4000K 6500K | 5/10/15W/M | 80lm/w | Free cutting | ||
| COB TAPE FREE CUT 480(6mm) | DC24V | 2700K 3000K 4000K 6500K | 5/10W/M | 80lm/w | Free cutting | ||
| COB TAPE FREE CUT 480 | DC12/24V | 2700K 3000K 4000K 6500K | 5W/10W/15W/M | 80lm/w | Free cutting | ||
| COB TAPE 480 | DC12/24V | Pink Yellow 2700K 3000K 4000K 6500K R B G O Marrs Green Tiffany Blue | 5/10/15W/M | 120lm/w | 25/50mm | ||
| COB TAPE 512(8MM) | DC24V | 2700K 3000K 4000K 6000K | 5/10/15W/M | 125lm/w | 31.2mm | ||
| COB TAPE 512(10MM) | DC24V | 2700K 3000K 4000K 6000K | 5/10/15W/M | 125lm/w | 31.2mm | ||
| COB TAPE 320 （Roll To Roll） | DC12/24V | 2700K 3000K 4000K 6000K | 10W/M | 104lm/w | 25/50mm | ||
| COB TAPE 480 （Roll To Roll） | DC12/24V | 2700K 3000K 4000K 6000K | 10W/M | 104lm/w | 25/50mm |

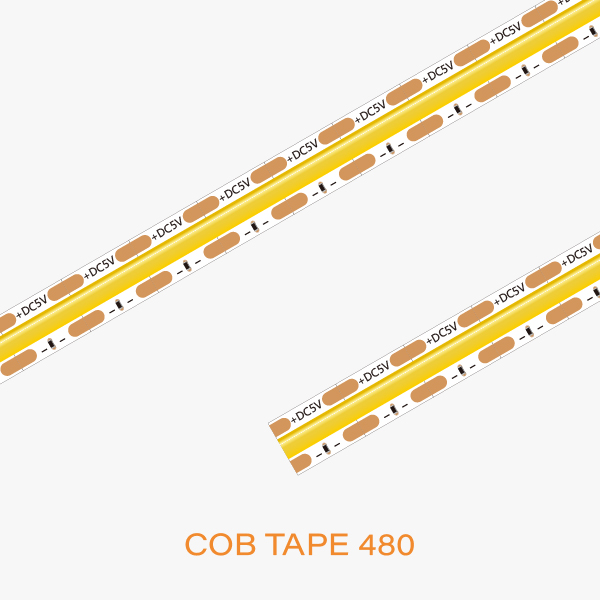

Dimensions & 3D View
