COB Strip
Long Run
One side power to drive 10M/15M/30M.
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Higher density of LEDs, resulting in a brighter and more uniform light output. 24V-48V, from 10M to 30M long run length. Small cuttable length to support freely configurable in length for precise field installation. SDCM≤3 to ensure color consistency. 180°beam angle, dimmable function.
Key Features
Super Long Length
One side power to drive 10M/15M/30M length.
Brightness
Consistent brightness from beginning to end.
PCB
Double-sided FPC rolled copper.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| COB TAPE LONG RUN 30M | DC48V | 2700K 3000K 4000K 6000K | 10W/M | 91lm/w | 50mm | ||
| COB TAPE LONG RUN 15M | DC24V | 2700K 3000K 4000K 6000K | 5/10W/M | 91lm/w | 50mm | ||
| COB TAPE LONG RUN 10M | DC24V | 2700K 3000K 4000K 6500K | 5/10W/M | 109lm/w | 50mm |

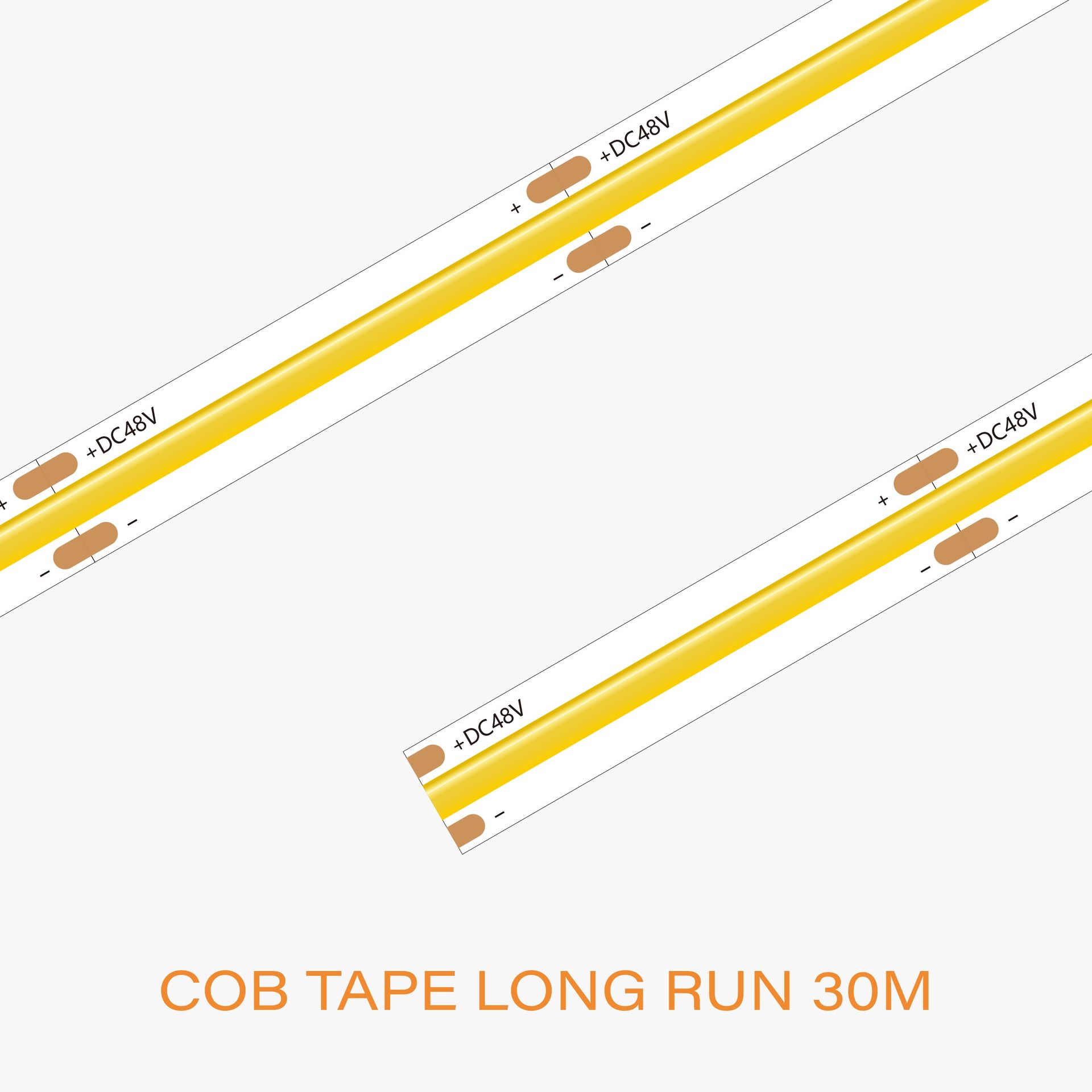

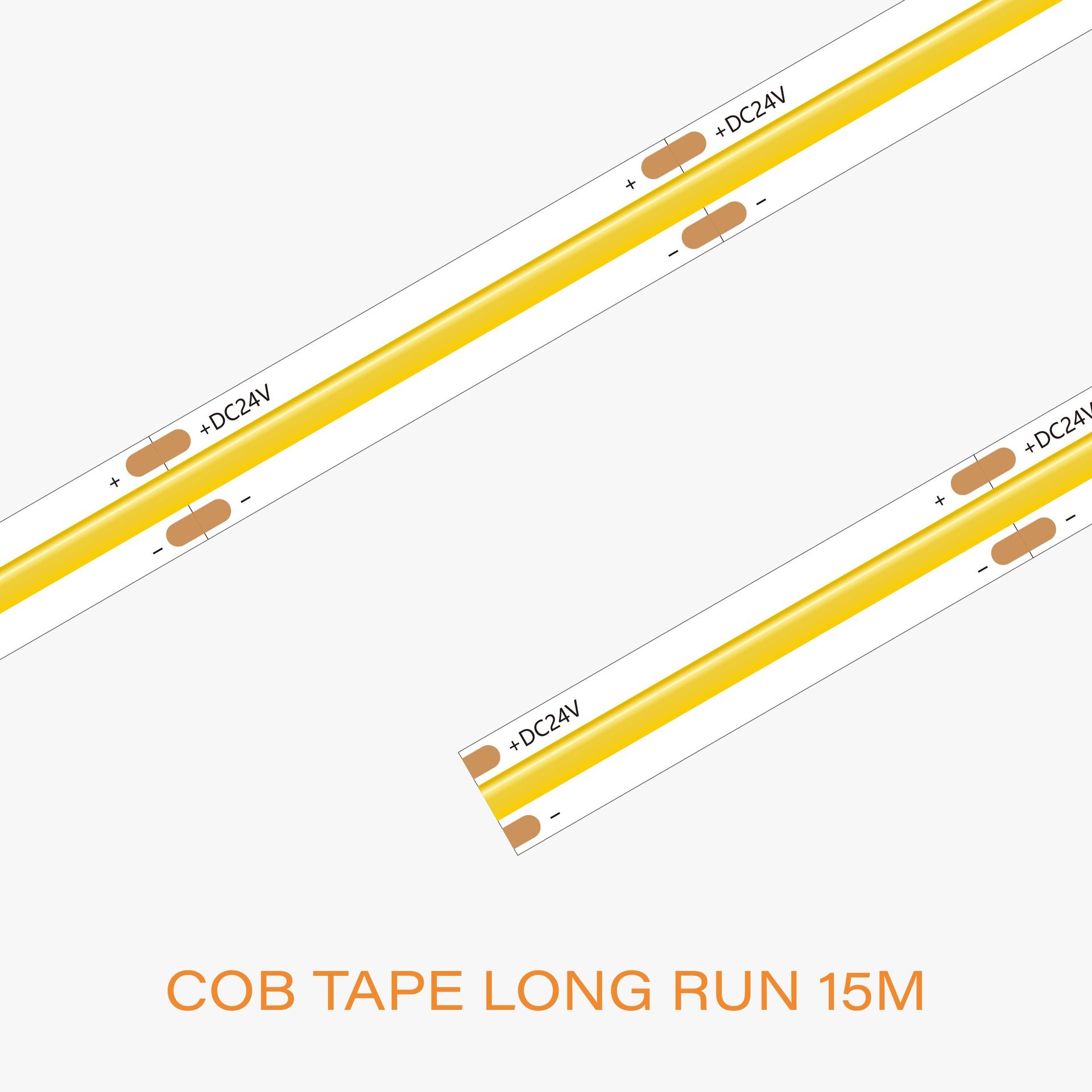

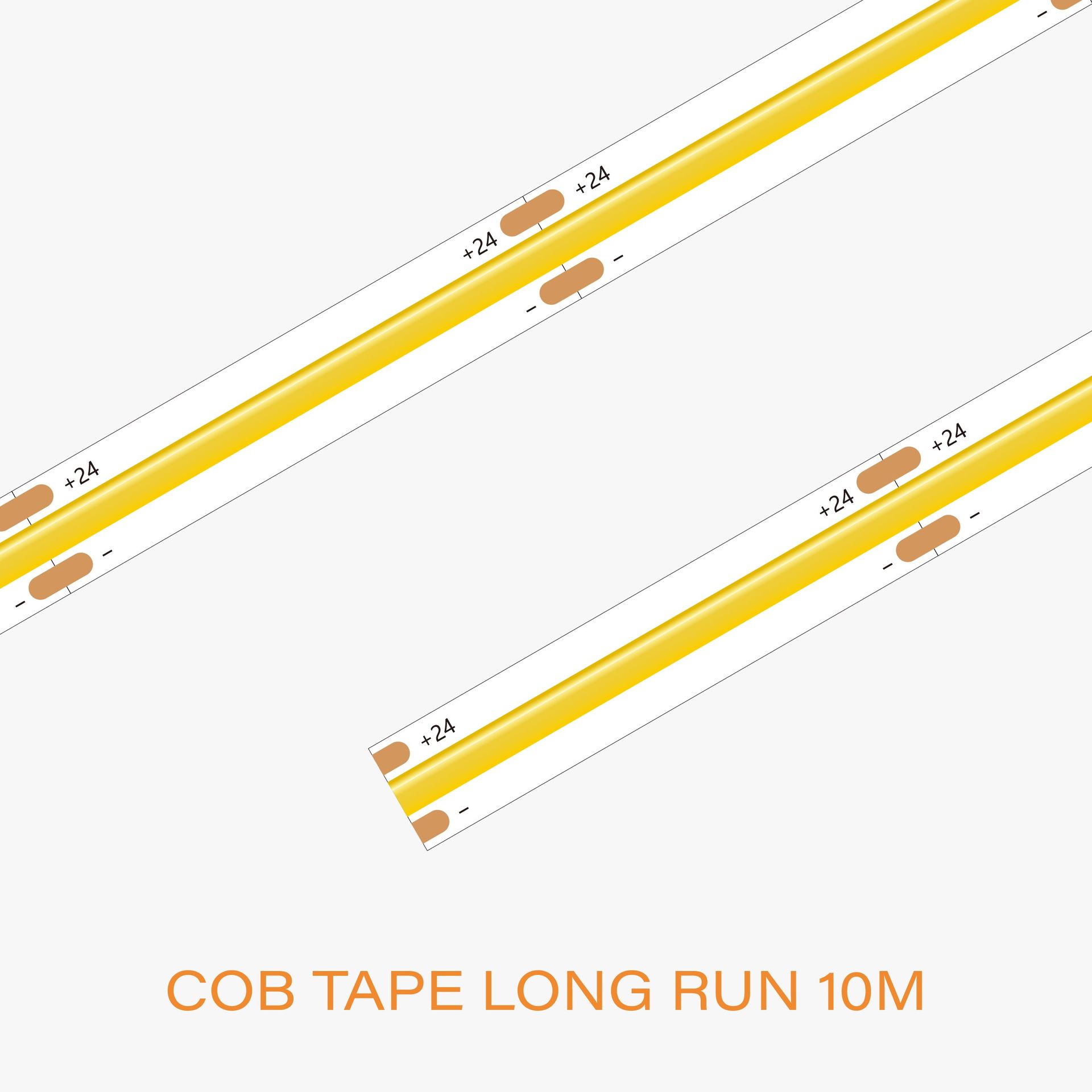

Dimensions & 3D View
