COB Strip
COB Strip Plus
The Red Dot Design Awards Winner product offers you a unique lighting. (IP65)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
The Red Dot Design Awards Winner product offers you a unique lighting. (IP65)
Key Features
DIY Connector
Make the customized lengths by yourselves in minutes! Soldering free DIY connector designed for user which can support you cut our OPAL Neon and easily re-connect lead cable on site.
Dot-free
Uniform lighting with dimmable function, single color, tunable white, RGB, RGBW are optional.
Creative
The Red Dot Design Awards Winner product offers you unique lighting.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| COB PLUS 8 | 8*6mm | DC24V | 2400K-6500K | 10W/M | 66lm/w | 25mm | IP67 |
| COB PLUS 10 | 10*6mm | DC24V | 2400K-6500K CCT | 5W/10W/M | 76lm/w | 27.7mm/25mm | IP67 |
| COB PLUS 12 | 12*6mm | DC24V | RGB | 4W/3.5W/8W/15W/M | 68lm/w | 50mm | IP67 |
| COB PLUS 14 | 14*6mm | DC24V | RGBW DIGITAL RGB | 10W/15W/M | 40lm/w | 33.3mm/50mm | IP67 |

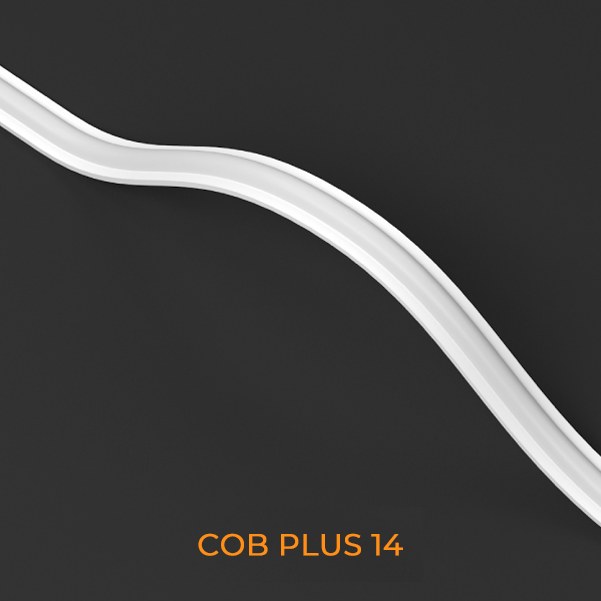

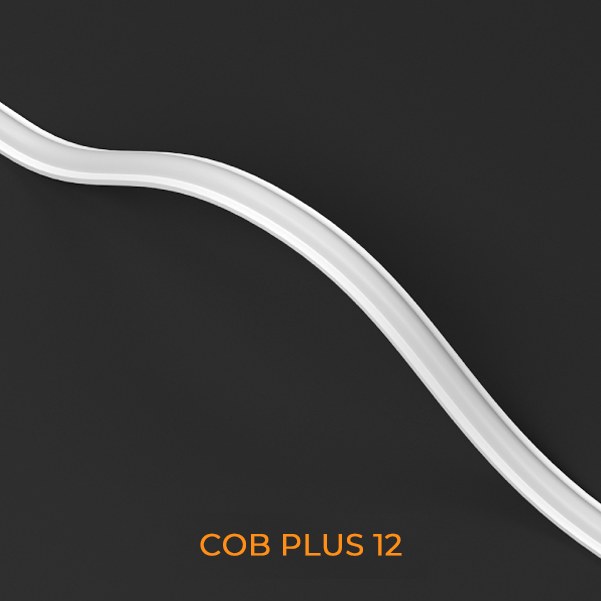

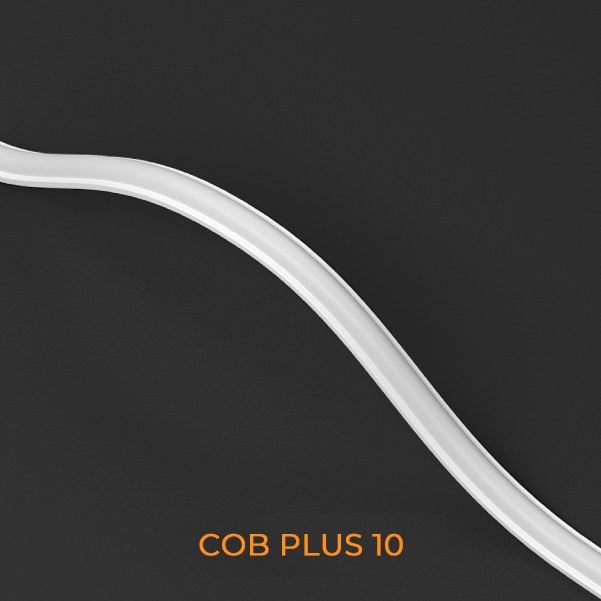

Dimensions & 3D View
