Dome Neon
The wide beam angle LED neon. (IP67)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
It is a wide beam angle >200° LED neon for indoor & outdoor use. Support freely configurable in length by small cutting increments for precise field installation. Flexible LED neon with uniform light and dimmable function. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
LED SDCM3
Pure gold wire LED, long-life LED > 50,000 hrs, 1 Bin, CRI>90.
DIY Connector
Make the customized lengths by yourselves in minutes! Soldering free DIY connector designed for user which can support you cut our ELITE Neon and easily re-connect lead cable on site.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| DOME 1225 SV | 12*25mm | DC24V | 2100K-6000K R B G RGB RGBW CCT DIGITAL | 5W/10W/15W/M | 31.8lm/w | 50/62.5mm | IP67 |
| DOME 0817 SV | 8*17mm | DC24V | 2100K-6000K R B G RGB CCT DIGITAL | 5W/10W/M | 34lm/w | 50/62.5mm | IP67 |
| DOME 1023 SV | 10*23mm | DC24V | 2100K-6000K R B G RGB RGBW CCT | 5W/10W/15W/M | 38.7lm/w | 50/62.5mm | IP67 |
| DOME D16 TV | 16*15.5mm | DC24V | 2100K-6000K R B G RGB CCT DIGITAL | 5W/10W/M | 70.7lm/w | 50/62.5mm | IP67 |

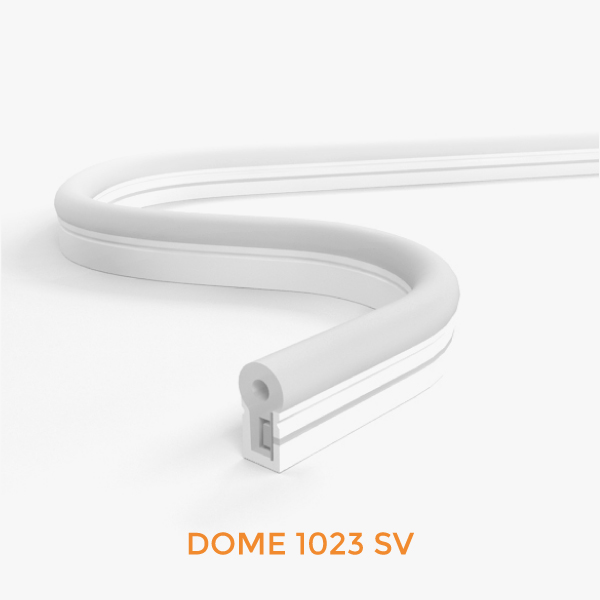

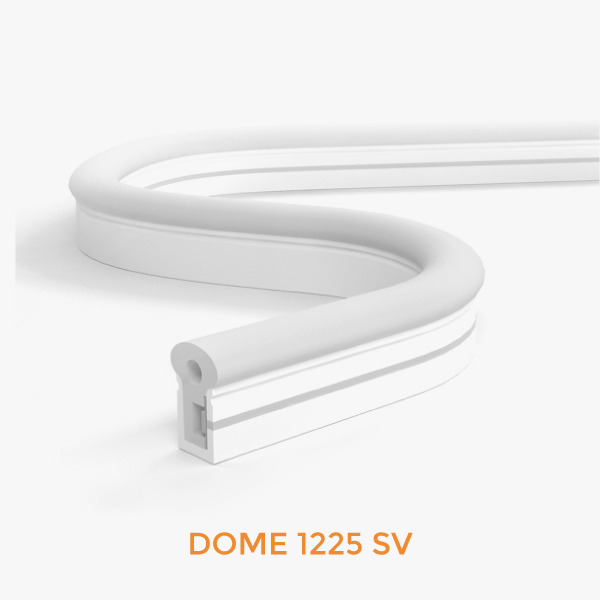

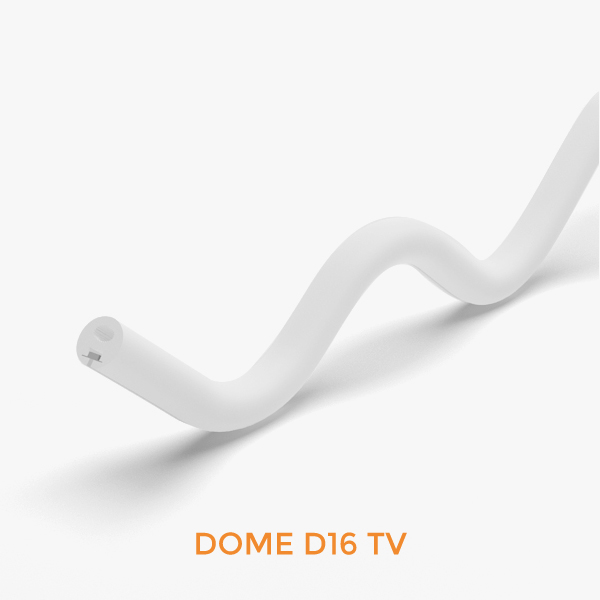

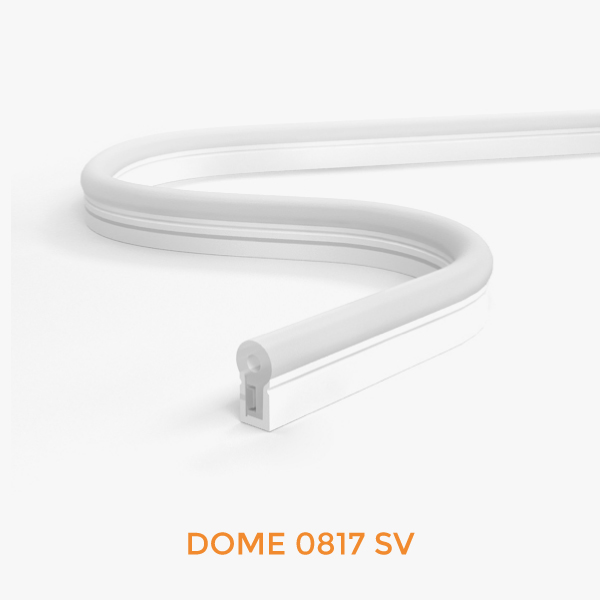

Dimensions & 3D View
