Black Neon
Unique black neon designed for dark background installation. (IP67/IP65)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Unique black LED neon designed for dark background installation. Long Run Length >10m, Production Length is up to 30m. Support freely configurable in length by small cutting increments for precise field installation. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.
Key Features
SILASTIC™ Material
Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.
Black Color
Different from traditional LED neon in white appearance, it is black LED neon designed for dark background installation.
Flexible
Easily bent into a variety of shapes and cut to desired length.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| AGILE BLACK1615 3D | 16*15mm | DC24V | 2700K-6500K R B G | 10W/M | 13.2lm/w | 35.7mm | IP67 |
| ELITE BLACK 1615 TV | 16*15mm | DC24V | 2700K-6500K R B G RGB RGBW CCT | 5W/10W/15W/M | 16.1lm/w | 50/62.5mm | IP67 |
| ELITE BLACK 1220 SV | 12*20mm | DC24V | 2700K-6500K R B G RGB RGBW CCT | 5W/10W/15W/M | 10.7lm/w | 50/62.5mm | IP67 |
| ELITE BLACK 1010 TV | 10*10mm | DC24V | 2700K-6500K R B G | 10W/M | 18.0lm/w | 35.7mm | IP67 |
| OMNI BLACK 25 | 25mm | DC24V | 2400K-5000K R B G RGB RGBW CCT | 5W/10W/16W/M | 8.0lm/w | 50/62.5mm | IP65 |

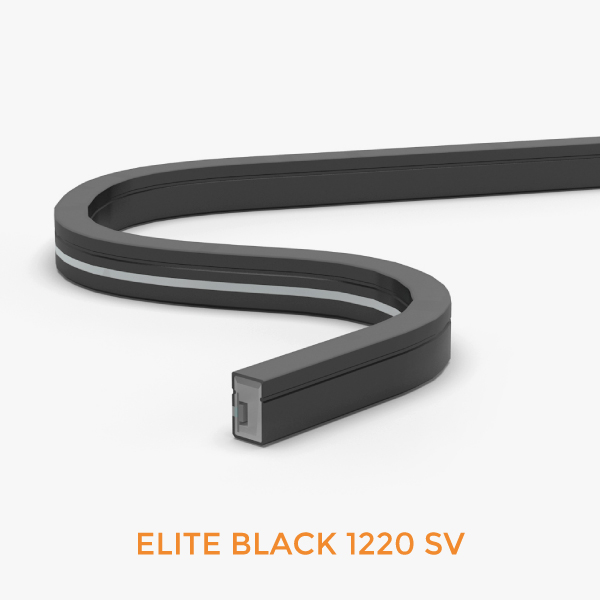

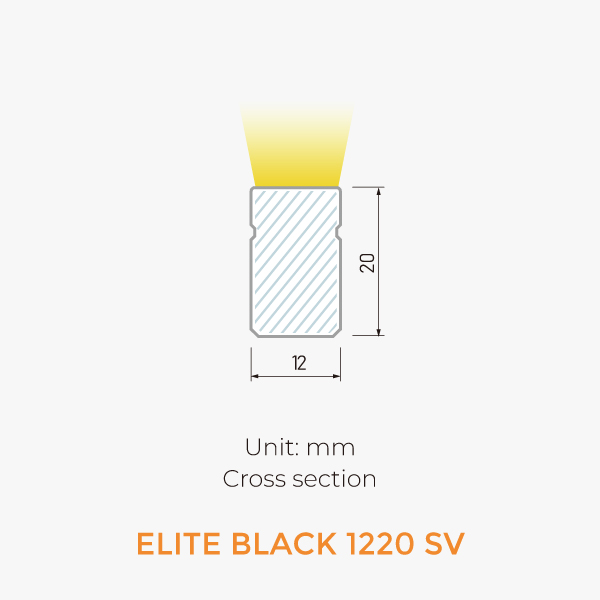

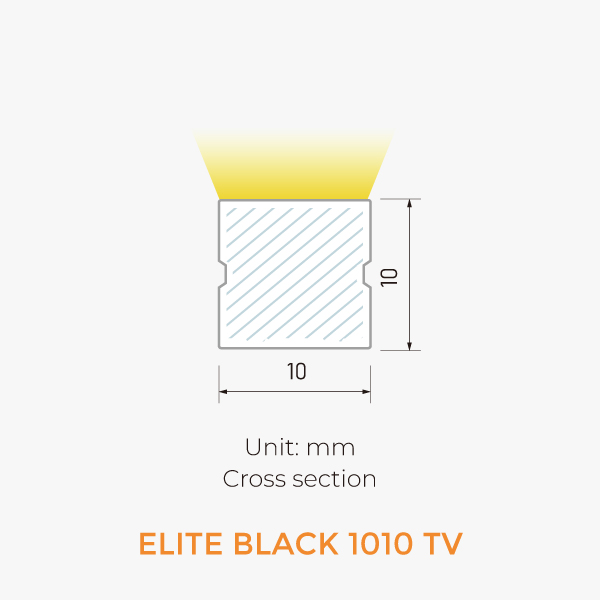

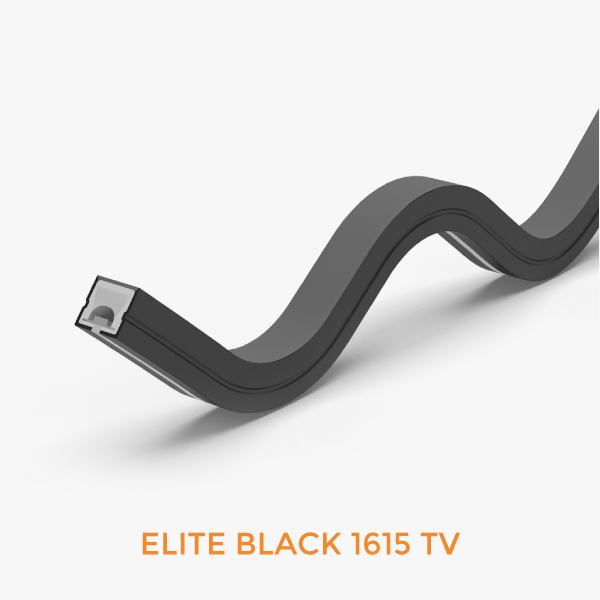

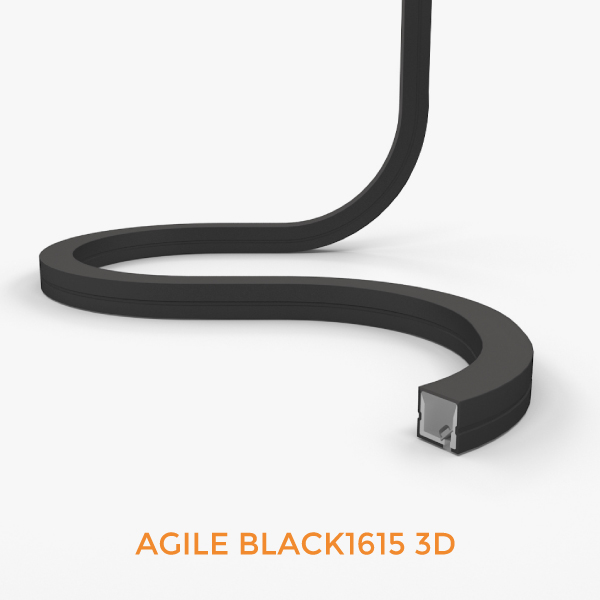

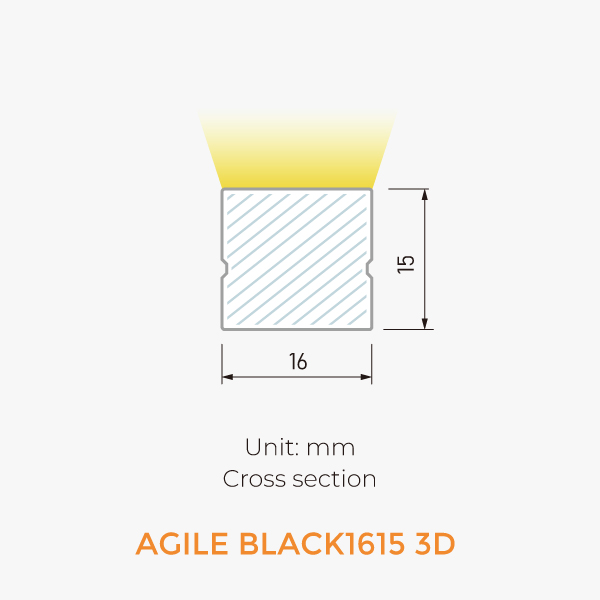

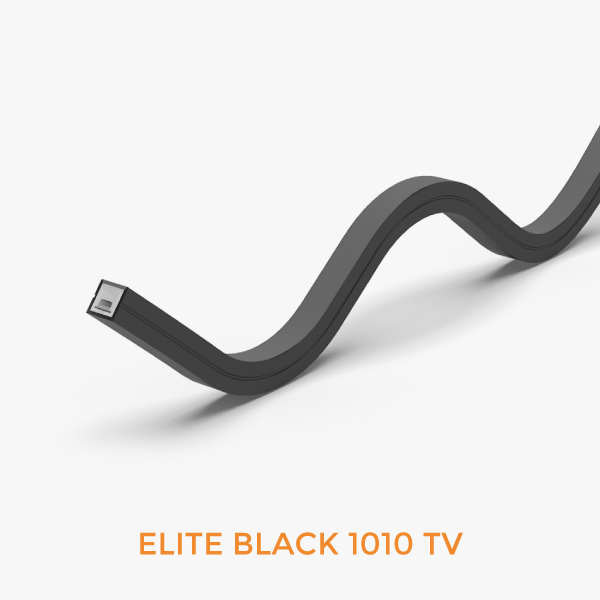

Dimensions & 3D View
