Apex Neon IP68

LED Neon

Made of durable material and designed for underwater applications. (IP68)

Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.

Product Description

Outdoor LED neon offers durable features in harsh envinronment, IP68 excellent outdoor performance allows APEX in underwater applications. It is made of Dow SILASTIC™ silicone or Polyurethane material. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.

Key Features

IP68

Solid neon with integrated injection molded end cap.

OUTDOOR USE

Premium UV resistance, chemical stability, and against abrasion. against to salt solution, weak acid, alkali corrosion and chlorination.

UL676

We have one IP68 neon compliance with underwater luminaire standards UL 676, suitable for submersion and use in underwater. Please contact us if you need use it underwater.

Different Models & Specifications

Product Name	Dimension	Voltage	CCT	Power (W/M)	Efficacy@4000K	Min Cut Unit	IP Rating

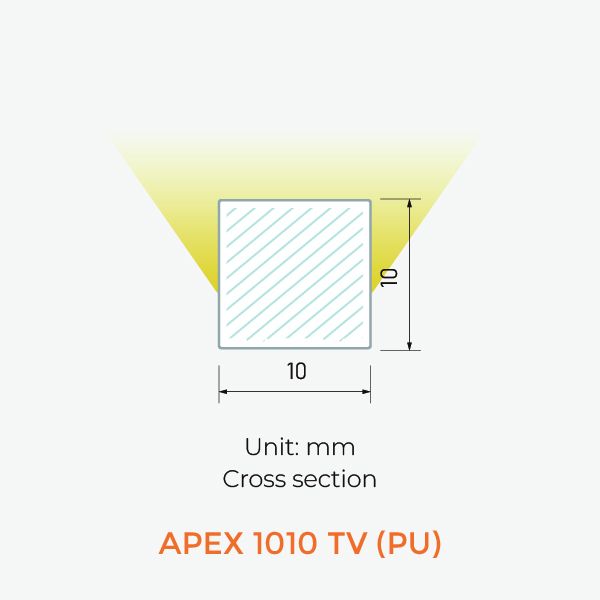

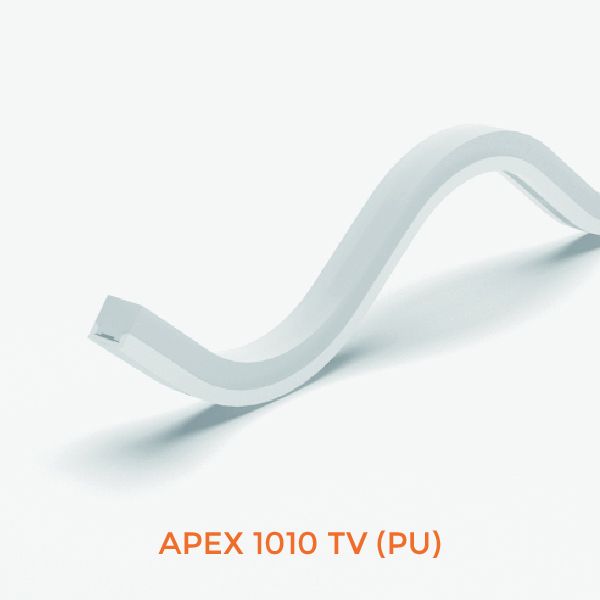

APEX 1010 TV (PU)	10*10mm	DC24V	2500K-5700K 2700K+6500K RGB CCT	5/10W/M	72.2/72.5lm/w	41.6/50mm	IP68

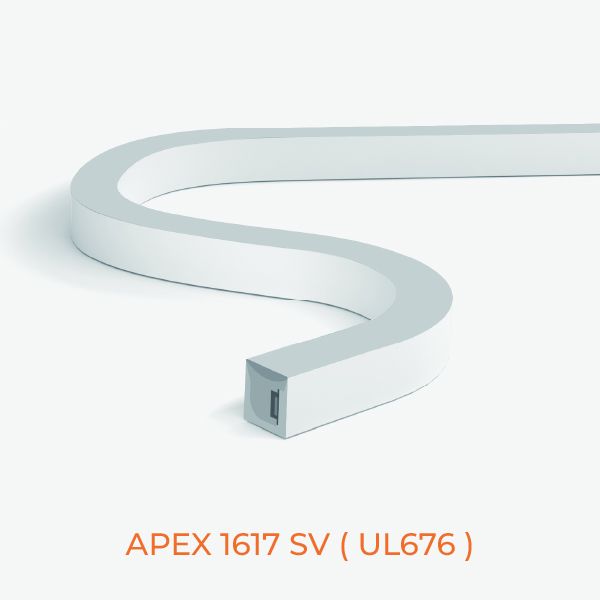

UL676 APEX 1617 SV	16*17mm	DC24V	Pink Yellow 1800K-6500K 2700K+6500K R B G O RGBW DIGITAL RGBW	5/10/15W/M	59.4/62.3/64.8lm/w	50/62.5/125mm	IP68

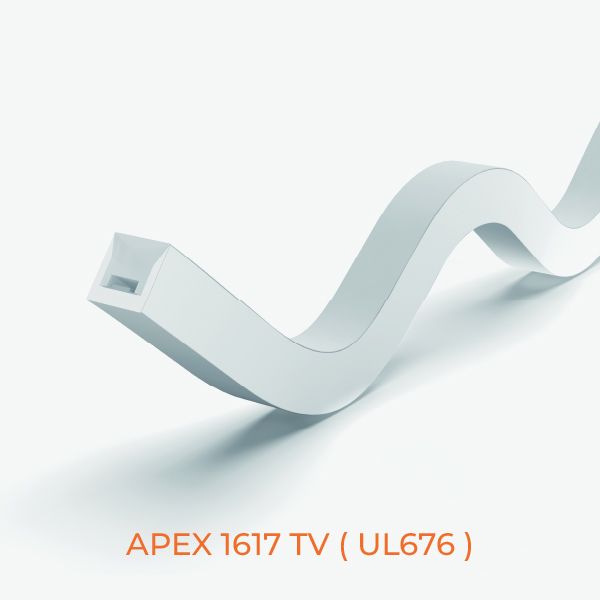

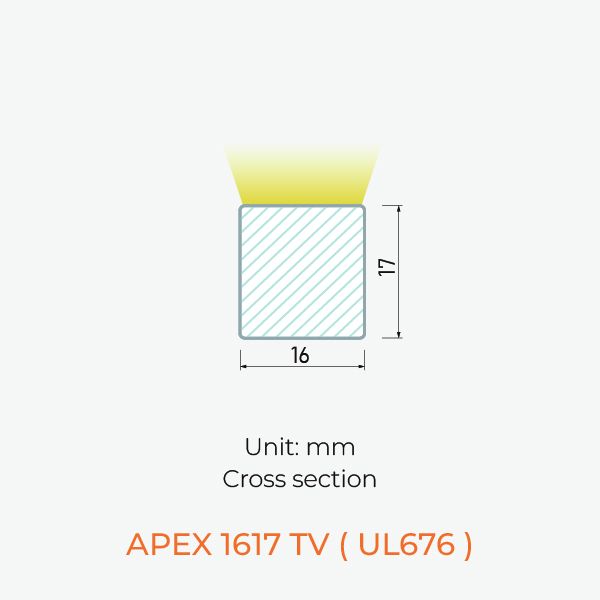

UL676 APEX 1617 TV	16.2*17.2mm	DC24V	Pink Yellow 2700K 3000K 3500K 4000K 5000K 6500K R B G O RGBW DIGITAL RGBW	10W/M	82.5lm/w	50mm	IP68

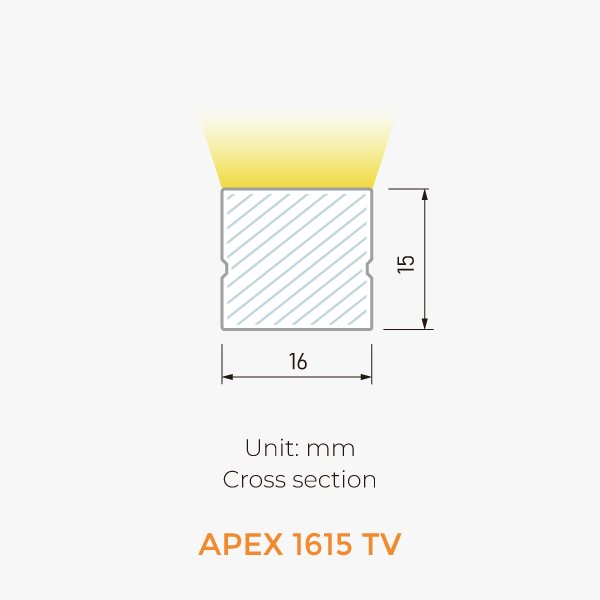

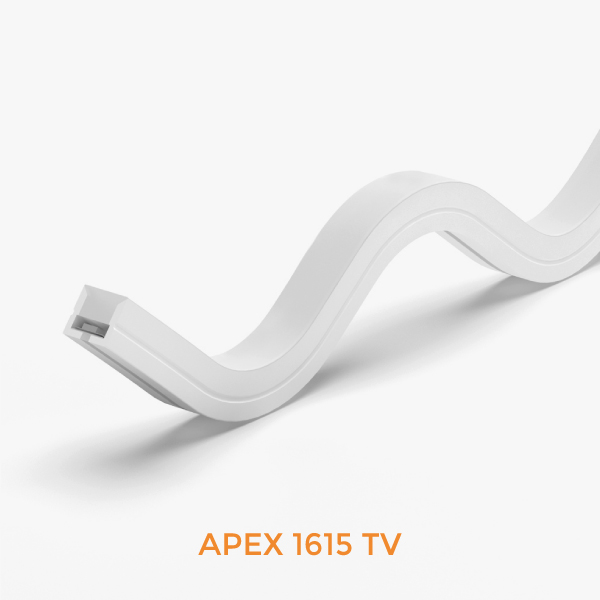

APEX 1615 TV	16*15mm	DC24V	2400K-6100K R B G RGB CCT DIGITAL	10W/M	41lm/w	50/62.5mm	IP68
APEX 1220 SV	12*20mm	DC24V	2400K-6100K R B G RGB CCT DIGITAL	10W/M	27.2lm/w	50/62.5/83.3/125mm	IP68
APEX 1615 TV (PU)	16*15mm	DC24V	2700K-6500K 2700K+6500K R B G RGB RGBW CCT	5W/10W/15W/M	67.2m/w	41.6/50/71.4mm	IP68
APEX 1220 SV (PU)	12*20mm	DC24V	2500K-5700K R B G RGB RGBW CCT	5W/10W/15W/M	46.07m/w	41.67/50/71.43mm	IP68
APEX 0612 SV (PU)	06*12mm	DC24V	2500K-5700K R B G RGB CCT	8W/M	52m/w	41.67/50mm	IP68
