Apex Neon IP68
Made of durable material and designed for underwater applications. (IP68)
Datasheets, IES files and the full catalog are available on request — contact our sales team, no downloads posted here.
Product Description
Outdoor LED neon offers durable features in harsh envinronment, IP68 excellent outdoor performance allows APEX in underwater applications. It is made of Dow SILASTIC™ silicone or Polyurethane material. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.
Key Features
IP68
Solid neon with integrated injection molded end cap.
OUTDOOR USE
Premium UV resistance, chemical stability, and against abrasion. against to salt solution, weak acid, alkali corrosion and chlorination.
UL676
We have one IP68 neon compliance with underwater luminaire standards UL 676, suitable for submersion and use in underwater. Please contact us if you need use it underwater.
Different Models & Specifications
| Product Name | Dimension | Voltage | CCT | Power (W/M) | Efficacy@4000K | Min Cut Unit | IP Rating |
|---|---|---|---|---|---|---|---|
| APEX 1010 TV (PU) | 10*10mm | DC24V | 2500K-5700K 2700K+6500K RGB CCT | 5/10W/M | 72.2/72.5lm/w | 41.6/50mm | IP68 |
| UL676 APEX 1617 SV | 16*17mm | DC24V | Pink Yellow 1800K-6500K 2700K+6500K R B G O RGBW DIGITAL RGBW | 5/10/15W/M | 59.4/62.3/64.8lm/w | 50/62.5/125mm | IP68 |
| UL676 APEX 1617 TV | 16.2*17.2mm | DC24V | Pink Yellow 2700K 3000K 3500K 4000K 5000K 6500K R B G O RGBW DIGITAL RGBW | 10W/M | 82.5lm/w | 50mm | IP68 |
| APEX 1615 TV | 16*15mm | DC24V | 2400K-6100K R B G RGB CCT DIGITAL | 10W/M | 41lm/w | 50/62.5mm | IP68 |
| APEX 1220 SV | 12*20mm | DC24V | 2400K-6100K R B G RGB CCT DIGITAL | 10W/M | 27.2lm/w | 50/62.5/83.3/125mm | IP68 |
| APEX 1615 TV (PU) | 16*15mm | DC24V | 2700K-6500K 2700K+6500K R B G RGB RGBW CCT | 5W/10W/15W/M | 67.2m/w | 41.6/50/71.4mm | IP68 |
| APEX 1220 SV (PU) | 12*20mm | DC24V | 2500K-5700K R B G RGB RGBW CCT | 5W/10W/15W/M | 46.07m/w | 41.67/50/71.43mm | IP68 |
| APEX 0612 SV (PU) | 06*12mm | DC24V | 2500K-5700K R B G RGB CCT | 8W/M | 52m/w | 41.67/50mm | IP68 |

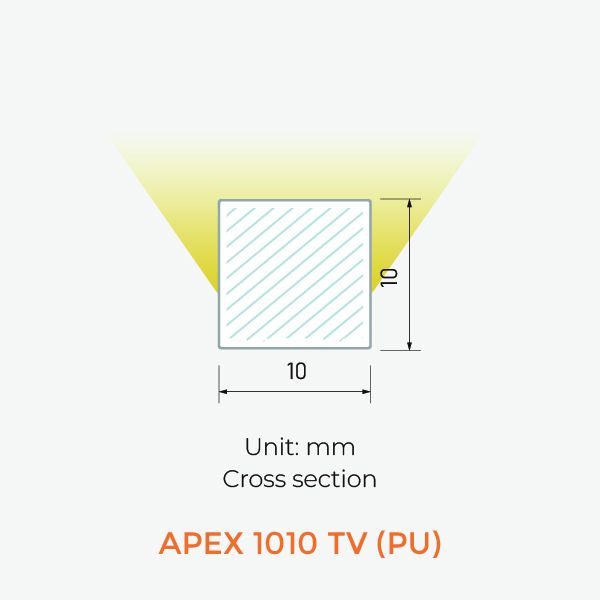

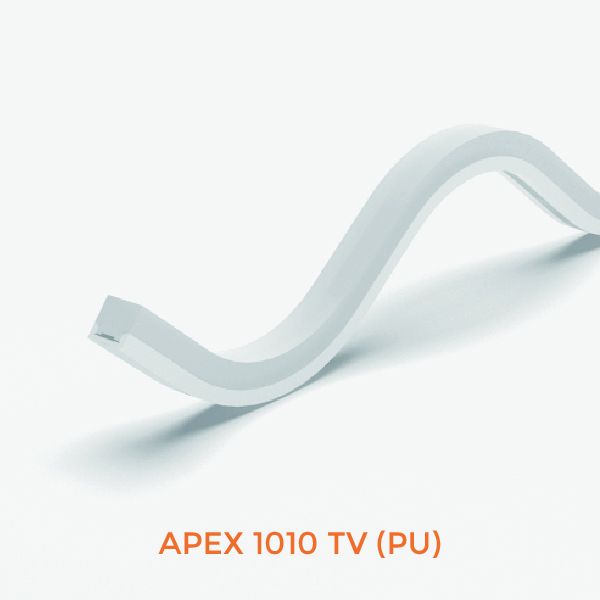

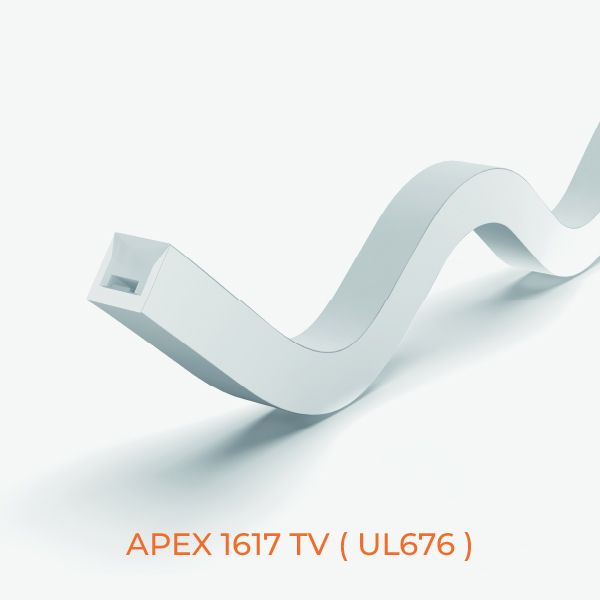

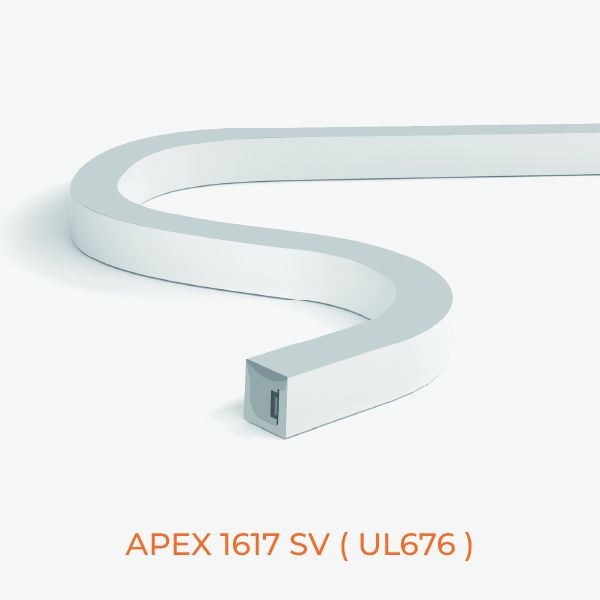

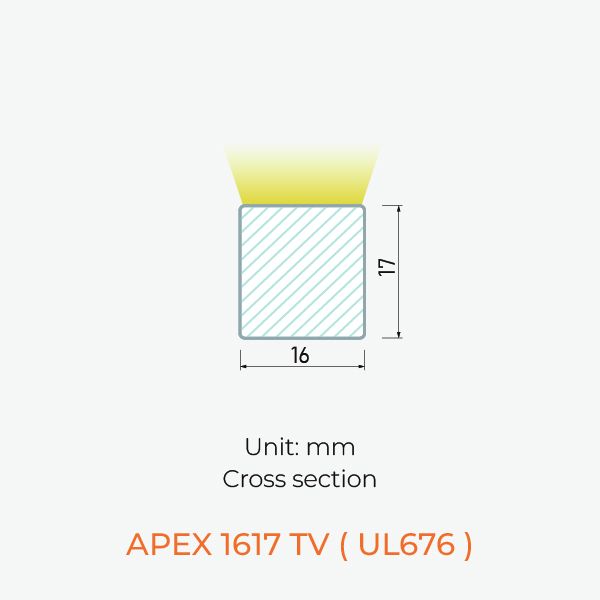

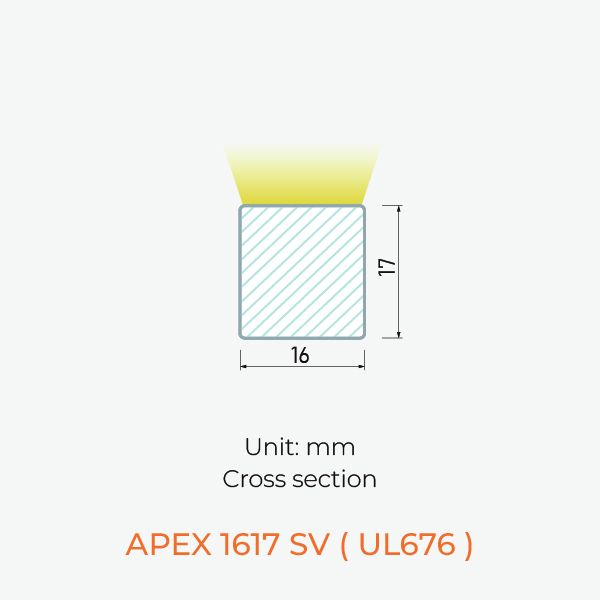

Dimensions & 3D View
